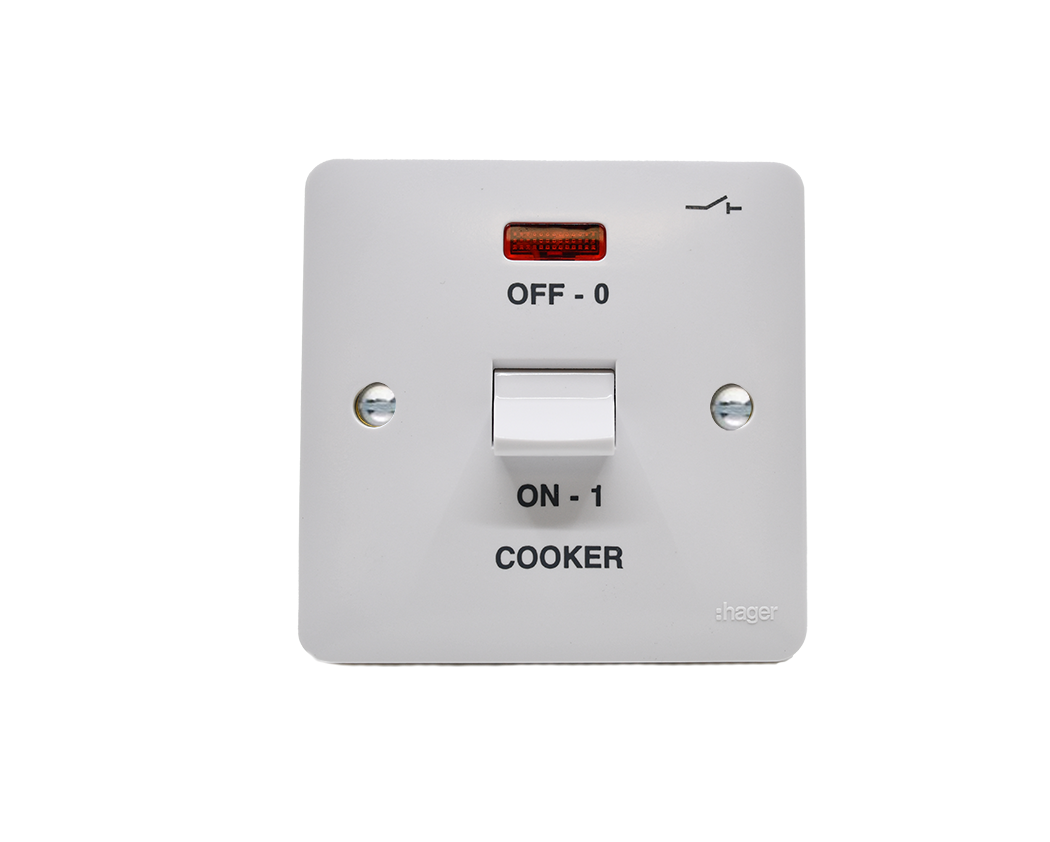

Hager WMDP50N/OV (Cooker type shown)
Image is for illustrative purposes only

Hager WMDP50N/OV Sollysta 50A Double Pole White Wall Switch 1 Gang with LED Indicator marked 'OVEN'

Part: WMDP50N/OV
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

50A Double Pole Switch 1 Gang with LED Indicator Marked OVEN.

  • Complies with BS EN 60669-2-4.
  • Rated conditional short circuit current (Inc) 1500A tested with Hager MTN150 6kA B curve MCB.
  • All terminal screws upward facing for ease of installation.
  • - Clearly printed terminal marking.
  • Capacity of each terminal: 2 x 6mm2 , 1 x 10mm2
  • Supplied with M3.5 x 30mm long fixing screws and screw covers
  • High-quality grade Urea Formaldehyde material with antiviral & antibacterial properties certified to ISO 22196:2011 & ISO 21702

Nominal voltage :240V
Mounting method :Flush mounted
Assembly :Basic unit with full cover plate
Method of operation :Rocker
Colour :White
Halogen free :Yes
With mounting plate :No
Connection type :Screwed terminal
Illumination :Yes
Surface protection :Untreated
Recess depth :22.6mm
Rated current :50A
Feedback-signal contact :No
Material qualifier :Urea formaldehyde
Type of lighting :LED replaceable
Material :Plastic
Type of fastening :Screw mounting
Wiring system :2-pole switch
Number of rockers/gangs :1
Switching current for fluorescent lamps :50AX
Push button switch :No
Washing machine switch :No
Surface finish :Glossy
Degree of protection (IP rating) :IP20
Width of device :86mm
Height of device :86mm
Depth of device :39.6mm
Label space/information surface :Yes
Function lighting :Illuminated (on)
Number of module spaces (modular system) :0
