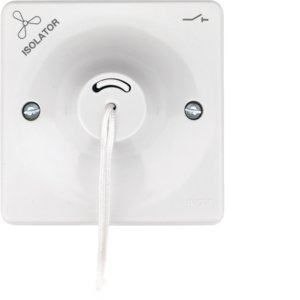

Hager WMCS3PIF Sollysta White 3 Pole Ceiling Switch marked 'FAN Symbol & ISOLATOR'

Part: WMCS3PIF

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

10A 3P Ceiling Switch Marked FAN & ISOLATOR.

Complies with BS EN 60669-2-4.
Terminal capacity: 3 x 1.5mm²
Supplied with M3.5 x 30mm long fixing screws and screw covers
High-quality grade Urea Formaldehyde material with antiviral & antibacterial properties certified to ISO 22196:2011 & ISO 21702

Nominal voltage :	240V
Mounting method :	Flush mounted
Assembly :	Basic unit with full cover plate
Method of operation :	Pull cord
Colour :	White
Halogen free :	Yes
With mounting plate :	Yes
Connection type :	Screwed terminal
Illumination :	No
Surface protection :	Untreated
Recess depth :	23mm
Rated current :	10A
Feedback-signal contact :	No
Material qualifier :	Urea formaldehyde
Type of lighting :	Other
Material :	Plastic
Type of fastening :	Screw mounting
Wiring system :	3-pole switch
Number of rockers/gangs :	0
Switching current for fluorescent lamps :	10AX
Push button switch :	No
Washing machine switch :	No
Surface finish :	Glossy
Degree of protection (IP rating) :	IP20
Width of device :	86mm
Height of device :	86mm
Depth of device :	63mm
Label space/information surface :	Yes
Function lighting :	Other
Number of module spaces (modular system) :	0
