Hager WMCC50N
Image is for illustrative purposes only

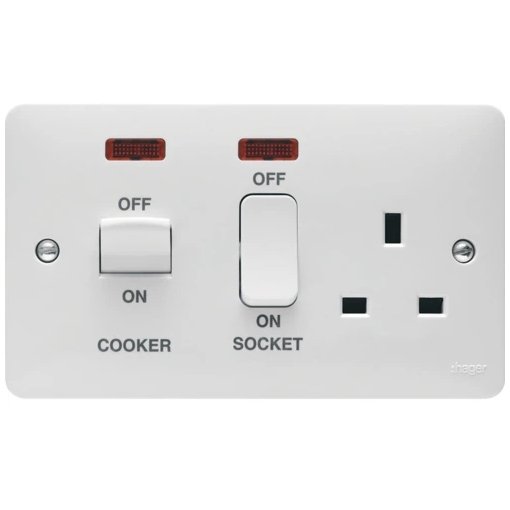

Hager WMCC50N Sollysta 45A Double Pole White Cooker Control Unit with LED Indicator

Part: WMCC50N
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Cooker Control Unit with LED Indicator.

  • Complies with BS 4177.
  • Switch and socket are double pole.
  • Twin earth as standard.
  • Main switch is suitable for isolation.
  • All terminals are upward facing for ease of installation.
  • Clearly printed terminal marking.
  • Capacity of terminals: 2 x 6.0mm2 , 1 x 16.0mm2 .
  • Supplied with M3.5 x 30mm long fixing screws and screw covers.
  • High-quality grade Urea Formaldehyde material with antiviral & antibacterial properties certified to ISO 22196:2011 & ISO 21702

Nominal current :45A
Nominal voltage :250V
Mounting method :Flush mounted
Colour :White
Model :British Standard
Halogen free :Yes
Number of units/gangs :0
Lockable :No
With hinged lid :No
Connection type :Screwed terminal
Surface protection :Untreated
With indicator lamp :Yes
Number of phases :1
With enhanced contact protection :No
Frequency :50 to 60Hz
With on/off switch :Yes
Label space/information surface :No
Eject-mechanism :No
Rotated central insert :No
Over voltage-/surge protection :No
Fault current protection :No
Insulated mounting :No
Material :Plastic
Type of fastening :Mounting with screw
Impact resistance (IK rating) :Other
Transparent :No
Surface finish :Glossy
With miniature fuse :No
With loop through function :Yes
Degree of protection (IP rating) :IP20
Width of device :146mm
Height of device :86mm
Depth of device :39.6mm
Number of switchable socket outlets :1
With function lighting :Yes
With orientation lighting :No
Number of module spaces (modular system) :0
Number of active contacts (round) :0
Number of active contacts (rectangular) :2
