Hager WFTVLPWW
Image is for illustrative purposes only

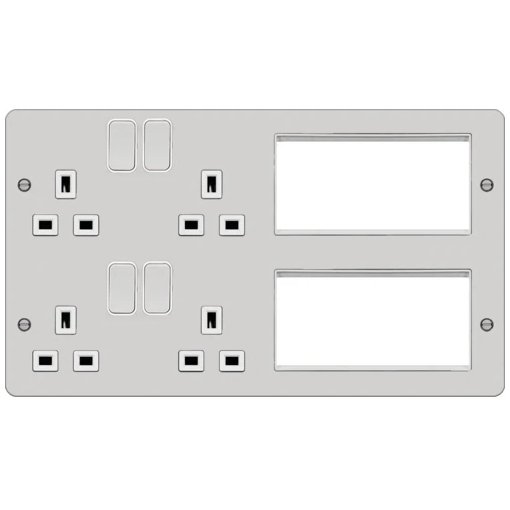

Hager WFTVLPWW Sollysta White Plate Lounge Plate for TV, Power & Data: White Insert

Part: WFTVLPWW
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Lounge Plate for TV, Power & Data White Plate White Insert.

  • Carrier plates facilitate installation of industry standard modules
  • Easy to configure for all applications
  • Quick release of modules for maintenance
  • WR references supplied with M3.5 x 30mm long fixing screws
  • WF references supplied with M3.5 x 20mm long fixing screws

Nominal current :13A
Nominal voltage :250V
Mounting method :Flush mounted
Colour :White
Model :British Standard
Halogen free :Yes
Number of units/gangs :8
Lockable :No
With hinged lid :No
Connection type :Screwed terminal
Surface protection :Lacquered
With indicator lamp :No
Number of phases :1
With enhanced contact protection :Yes
Frequency :50 to 60Hz
With on/off switch :Yes
Label space/information surface :No
Eject-mechanism :No
Rotated central insert :No
Over voltage-/surge protection :No
Fault current protection :No
Insulated mounting :No
Material :Metal
Type of fastening :Mounting with screw
Transparent :No
Surface finish :Glossy
With miniature fuse :No
With loop through function :Yes
Degree of protection (IP rating) :IP20
Width of device :146mm
Height of device :172mm
Depth of device :1.5mm
Number of switchable socket outlets :2
With function lighting :No
With orientation lighting :No
Number of module spaces (modular system) :0
Number of active contacts (round) :0
Number of active contacts (rectangular) :8
