Hager VMLF908CUSPD

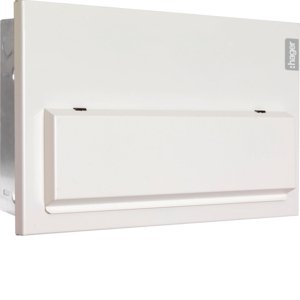

Image is for illustrative purposes only

Hager VMLF908CUSPD 100A 8 Way Design 10 Flush Mounted High Integrity Consumer Unit, 2*100A 30mA Type A RCCB & Type 2 SPD

Part: VMLF908CUSPD
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Design 10, Flush 8 Way HI 100A Sw 2*100A 30mA RCCB Type A SPD.

  • Flush Mounted Consumer Units
  • Configurable High Integrity
  • Metal split load and configurable consumer units with ability to protect selected circuits with RCBOs and the remainder of circuits split across two RCCBs.
  • - All consumer units contain rear cable entry, along with top & bottom knockouts.
  • Supplied with a full metal DIN rail, 100A switch disconnector incomer and 2 Type A RCCBs and a full complement of earth and neutral terminals along with marking labels, busbar, instructions, rear cable protector plate and meter tail clamp.
  • Conforms to BS EN 61439-3 Including Annex ZB (16kA rating).
  • Adjustable depth in wall 72mm-92mm.
  • References ending in SPD come with a Type 2 SPD fitted.

Mounting method :Flush mounted
Width :407mm
Height :282mm
Depth :104mm
Lockable :No
With socket outlet :No
Number of phases :1
Protection :Miniature circuit breaker/RCBO
Extension possible :Yes
With transparent cover :No
Over voltage-/surge protection :Yes
Housing material :Steel
Built-in depth :72mm
Degree of protection (IP rating) :IP2XC
Number of earth leakage switches 300 mA :0
Number of earth leakage switches 30 mA :2
Number of poles main switch :2
With bell transformer :No
Cooker group :Single phase
Main switch rated current :100A
