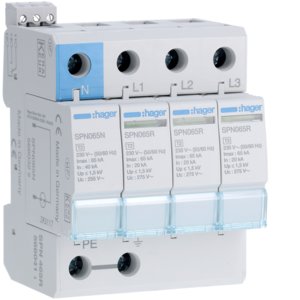

Hager SPN465R 65kA Type 2 Pluggable 4 Pole Surge Protection Device with Reserve & Remote Contact

Part: SPN465R

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

SPD 4P pluggable 65kA class 2 with reserve + remote contact.

Mounting method :	DIN rail (top hat rail) 35 mm
With remote signalling contact :	Yes
Voltage protection level :	1.5kV
Max. voltage (Uc) :	275V
Nominal discharge surge current 8/20 盜 (In) :	20kA
Nominal voltage AC :	400V
Type / Test class 2 :	Yes
Signalling at the device :	Optic
Degree of protection (IP rating) :	IP20
Max. PV-voltage :	0V
Integrated backup fuse :	No
Max. discharge surge current (8/20) :	65kA
