Hager SPN265R

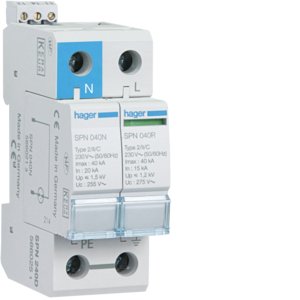

Image is for illustrative purposes only

Hager SPN265R 65kA Type 2 Pluggable 2 Pole Surge Protection Device with Reserve & Remote Contact

Part: SPN265R
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

SPD 2P pluggable 65kA class 2 with reserve + remote contact.

Mounting method :DIN rail (top hat rail) 35 mm
With remote signalling contact :Yes
Voltage protection level :1.5kV
Max. voltage (Uc) :275V
Nominal discharge surge current 8/20 µs (In) :20kA
Nominal voltage AC :230V
Type / Test class 2 :Yes
Signalling at the device :Optic
Degree of protection (IP rating) :IP20
Max. PV-voltage :0V
Integrated backup fuse :No
Max. discharge surge current (8/20) :65kA
