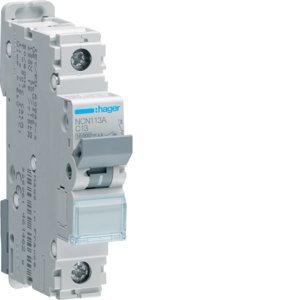

Hager NCN113A MCB 1P 10kA/15kA C-13A 1M
Part: NCN113A
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
MCB 1P 10kA/15kA C-13A 1M.
| Voltage type : | AC |
| Recess depth : | 70mm |
| Rated current : | 13A |
| Rated voltage : | 400V |
| Frequency : | 50 to 60Hz |
| Tripping characteristic (type/curve) : | C |
| Rated insulation voltage Ui : | 500V |
| Current limiting class : | 3 |
| Over voltage category : | 3 |
| Pollution degree : | 2 |
| Width in number of modular spacings : | 1 |
| Degree of protection (IP rating) : | IP20 |
| Number of protected poles : | 1 |
| Concurrently switching N-neutral : | No |
| Connectable conductor cross section solid-core : | 1 to 35mm2 |
| Connectable conductor cross section multi-wired : | 1 to 25mm2 |
| Ambient temperature during operating : | -25 to 70°C |
| Additional equipment possible : | Yes |
| Number of poles (total) : | 1 |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V : | 10kA |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V : | 15kA |
| Rated impulse-withstand voltage (Uimp) : | 6kV |
