Hager MZ206
Image is for illustrative purposes only

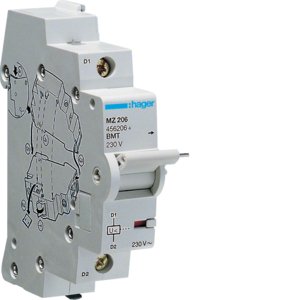

Hager MZ206 230V Under Voltage Release AC

Part: MZ206
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Under voltage release 230V AC.

  • All auxiliaries are common to both single and multi-pole 10kA circuit breakers and RCCBs.
  • Connection capacity - 4mm˛ flexible, 6mm˛ rigid
  • Shunt Trip: Allows remote tripping of devices. Operation of the coil is indicated by a flag on the front of the device.
  • Under Voltage Release: Allows MCB to be closed only when voltage is above 85% of Un. MCB will automatically trip when voltage falls to between 70-35% of Un. Operation of the coil is indicated by a flag on the front of the device.
  • Under Voltage Release 230V A.C.
  • 1MOD

Delayed :No
Suitable for off-load switch :Yes
Suitable for overload relay :Yes
Type of electric connection :Screw connection
Rated control supply voltage at AC 50 Hz :230V
Rated control supply voltage at AC 60 Hz :230V
Rated control supply voltage at DC :0V
Suitable for motor safety switch :No
Suitable for power circuit breaker :No
Voltage type for actuating :AC
Number of contacts as normally closed contact :0
Number of contacts as normally open contact :0
Number of contacts as change-over contact :0
