Hager JKD2884TM

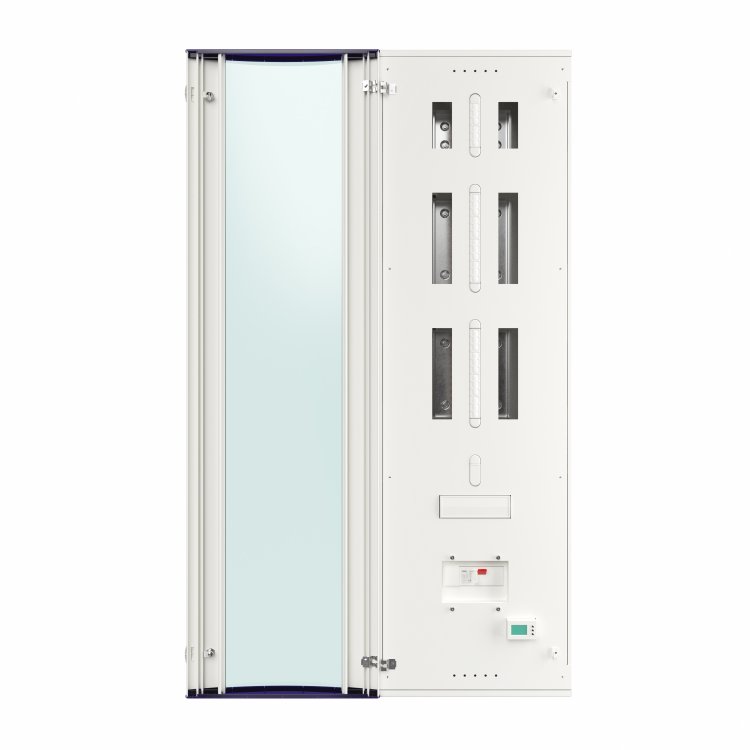

Image is for illustrative purposes only

Hager JKD2884TM 200A Tri Metered TPN Power, Lighting & Mech Services Board. Lower Pan 8 Way/Middle Pan 8 Way/Upper Pan 4 Way

Part: JKD2884TM
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Hager Invicta 3 200A Triple Metered TPN Power, Lighting & Mechanical Services Board. Lower Pan 8 Way/Middle Pan 8 Way/Upper Pan 4 Way.

  • Distribution boards conforming to BS EN 61439-3
  • Split metered sections to seperately monitor small power and lighting and machanical service loads
  • Complete with a factory fitted 125A TP switch disconnector
  • MID approved energy meter and CT's
  • Suitable for tenant billing if required
  • Advanced features facilitate multiple modes of operation enabling the board to be used for power and lighting only
  • The orientation of load type labelling can be reversed if required

Mounting method :Surface mounted
Width :465mm
Height :1550mm
Depth :165.5mm
Lockable :No
Number of phases :3
Extension possible :Yes
With transparent cover :Yes
Over voltage-/surge protection :No
Degree of protection (IP rating) :IP30
Number of poles main switch :3
Main switch rated current :200A
Protection main switch :Yes
Number of outgoing ways :72
With metering :Yes
