Hager JK240MID 250A Multifunction MID Meter Pack

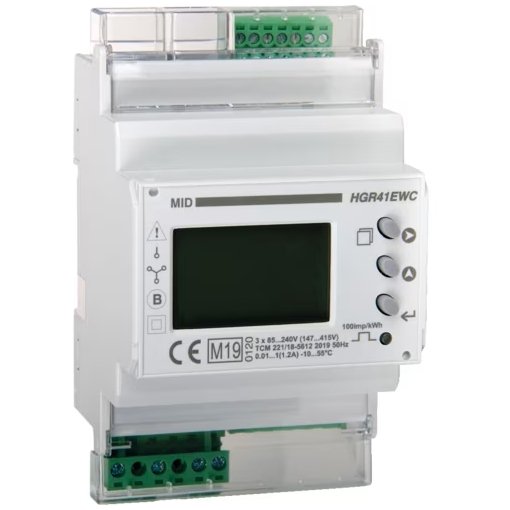

Image is for illustrative purposes only

Hager JK240MID 250A Multifunction MID Meter Pack: Pulsed and Modbus for JK

Part: JK240MID
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

JK Multifunction Meter Pack 250A Pulsed and Modbus MID.

  • Meter kit for standard 250A distribution boards & hybrid 250A distribution boards
  • Each meter pack contains: meter, 3 pole CT Block, 3 x fuses & carriers on DIN rail, wiring loom, incoming shroud & instructions

Mounting method :DRA (DIN-rail adapter)
Model :Measurement transformer
Type of indication :Digital
Max. current (Imax) :6000A
Width in number of modular spacings :4
Type of meter :Electronic
Interface type :Modbus
Tariff type :Multi-tariff
Calibrated :Yes
Approval :Measuring Instruments Directive
Accuracy class :A
Pole type :Four conductor
Measuring type load profile :No
With lock code :Yes
Nominal current (In) :250A

Make an enquiry

...
