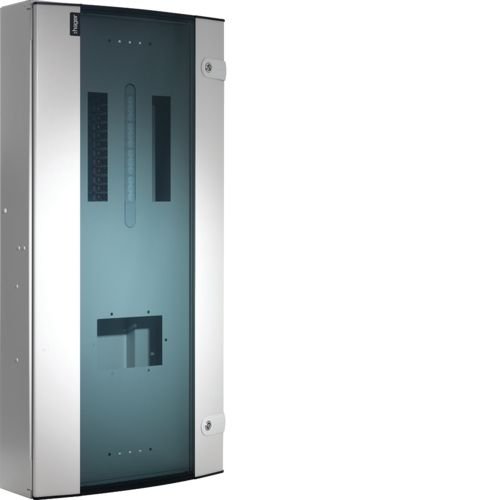

Hager JK224BG 250A 24 Way Invicta 3 Type B TPN Distribution Board Glazed Door

Part: JK224BG
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

250A 24 Way TPN Board Glazed Door.

  • Invicta 3 250A TP&N Distribution Board (250A Incoming, 63A Outgoing)
  • Surface mounted steel enclosures, IP3XD rated, available with plain, glazed & Amendment 3 door options.
  • Conforms to BS EN 61439-3. InA = 250A, Inc = 63A, Icc = 25kA
  • Supplied without incoming and outgoing devices. A Hager incoming kit must be used.

Mounting method :Surface mounted
Colour :Other
Width :465mm
Height :1550mm
Depth :165.5mm
RAL number :7035
Type of covering :Cover
EMC-version :No
Housing material :Steel
Type of closure :Other
Degree of protection (IP rating) :IP30
Transparent cover/door :No
With lock :Yes
