Hager JK216BA3

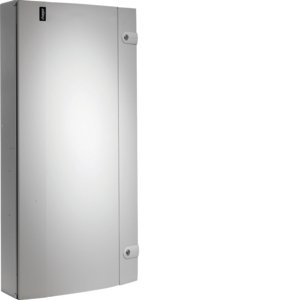

Image is for illustrative purposes only

Hager JK216BA3 250A 16 Way Invicta 3 Type B TPN Distribution Board, Plain Door Amendment 3

Part: JK216BA3
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

250A 16 Way TPN Board Plain Door Amendment 3.

  • Invicta 3 250A TP&N Distribution Board (250A Incoming, 63A Outgoing)
  • Surface mounted steel enclosures, IP3XD rated, available with plain, glazed & Amendment 3 door options.
  • Conforms to BS EN 61439-3. InA = 250A, Inc = 63A, Icc = 25kA
  • Supplied without incoming and outgoing devices. A Hager incoming kit must be used.
  • Residential Applications

Mounting method :Surface mounted
Height :1250mm
Depth :165.5mm
RAL number :7035
With mounting plate :No
Type of covering :Cover
EMC-version :No
Extension possible :Yes
Housing material :Steel
Degree of protection (IP rating) :IP30
Transparent cover/door :No
With lock :No
Colour :Other
Width :465mm
Model :Lock door
Height :1250mm
EMC-version :No
Version as glazed door :No
Version as door for disconnecting switch interlocking :No
