Hager JK20210BSD

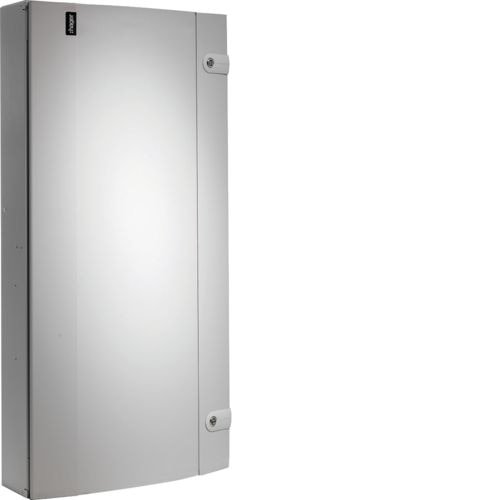

Image is for illustrative purposes only

Hager JK20210BSD 250A Hybrid TPN Board With Switch Disconnector 2 + 10 Way Plain Door

Part: JK20210BSD
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

250A 2+10 Way Hybrid TPN With Switch Disconnector and Plain Door.

  • A hybrid distribution board combining 2x TP ways of 27mm MCB devices to supply end loads up to 125A, with standard 18mm MCB/RCBOs for other smaller loads
  • Surface mounted steel enclosure, IP3XD rated, available with plain steel door
  • Conforms to BS EN 61439-3, InA = 250A, Inc = 63A /125A, Icc = 25kA
  • Supplied with 250A 3P Switch Disconnector Incomer Pre-Fitted

Mounting method :Surface mounted
Width :465mm
Height :1250mm
Depth :165.5mm
Lockable :No
With socket outlet :No
Number of phases :3
Protection :Other
Extension possible :Yes
With transparent cover :No
Over voltage-/surge protection :No
Housing material :Steel
Degree of protection (IP rating) :IP30
Number of earth leakage switches 300 mA :0
Number of earth leakage switches 30 mA :0
Number of poles main switch :3
Main switch rated current :250A
