Hager JK132EG

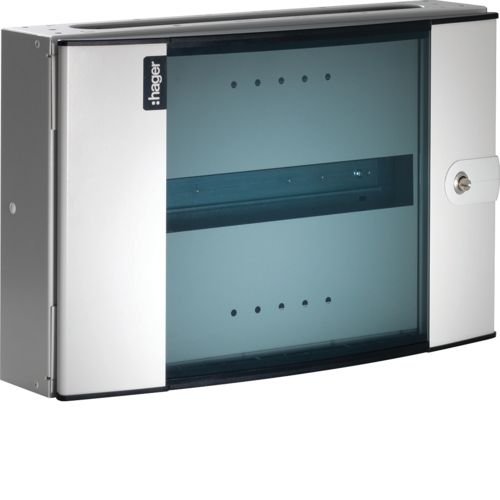

Image is for illustrative purposes only

Hager JK132EG 32 Module Type B DIN Rail Enclosure Glazed Door, 125A

Part: JK132EG
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

JK1 32 Module DIN Rail Box Glazed.

  • DIN Extension Box & Door Kit for 125A Primary Boards
  • Extension boxes have plain or glazed doors and a DIN rail for mounting modular devices.
  • - Conforms to BS EN 62208.
  • - Full width enclosure provided with sixteen modular ways per row

Mounting method :Surface mounted
Colour :Other
Width :465mm
Height :450mm
Depth :165.5mm
RAL number :7035
Number of rows :2
Type of covering :Door
EMC-version :No
With DIN-rail :Yes
Housing material :Steel
Width in number of modular spacings :32
Type of closure :Other
Transparent cover/door :Yes
With lock :Yes

Make an enquiry

...
