Hager JK116E
Image is for illustrative purposes only

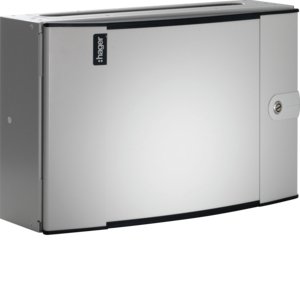

Hager JK116E 16 Module Type B DIN Rail Enclosure Plain Door, 125A

Part: JK116E
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

JK1 16 Module DIN Rail Box Plain.

  • DIN Extension Box & Door Kit for 125A Primary Boards
  • Extension boxes have plain or glazed doors and a DIN rail for mounting modular devices.
  • - Conforms to BS EN 62208.
  • - Full width enclosure provided with sixteen modular ways per row

Mounting method :Surface mounted
Colour :Other
Width :465mm
Height :300mm
Depth :165.5mm
RAL number :7035
Number of rows :1
Type of covering :Door
EMC-version :No
With DIN-rail :No
Housing material :Steel
Width in number of modular spacings :16
Type of closure :Other
Degree of protection (IP rating) :IP30
Transparent cover/door :No
With lock :Yes
Mounting method :Surface mounted
Colour :Other
Width :465mm
Height :300mm
Depth :165.5mm
Number of rows :1
Type of covering :Door
EMC-version :No
With DIN-rail :No
Housing material :Steel
Width in number of modular spacings :16
Type of closure :Other
Degree of protection (IP rating) :IP30
Transparent cover/door :No
With lock :Yes
Colour :Other
Width :465mm
Model :Lock door
Height :300mm
EMC-version :No
Version as glazed door :No
Version as door for disconnecting switch interlocking :No
Mounting method :Surface mounted
Colour :Other
Width :465mm
Height :300mm
Depth :165.5mm
RAL number :7035
Number of rows :1
Type of covering :Door
EMC-version :No
With DIN-rail :Yes
Housing material :Steel
Width in number of modular spacings :16
Type of closure :Other
Degree of protection (IP rating) :IP30
Transparent cover/door :Yes
With lock :Yes
