Hager JK1125ATS

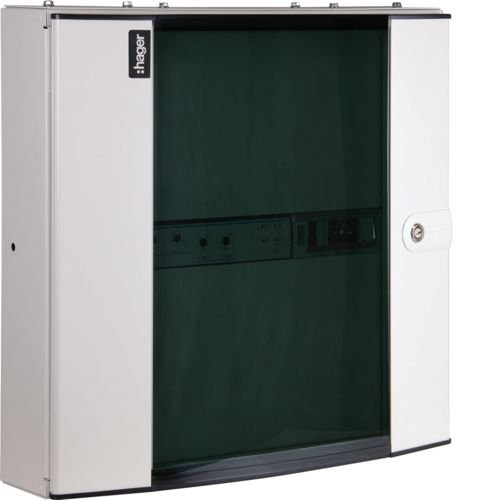

Image is for illustrative purposes only

Hager JK1125ATS 125A IP30 Enclosed Automatic Transfer Switch

Part: JK1125ATS
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
  • Conforming to BS EN 60947-3 & IEC 60947-6-1
  • Pollution degree 3
  • Overvoltage Category II
  • Electromagnetic compatibility – Environment category – A
  • Rated voltage of assembly: Un = 415V A.C. 50Hz
  • Rated operational voltage of assembly: Ue = 415V A.C. 50Hz
  • Rated insulation voltage of assembly: Ui = 690V A.C. 50Hz (Power Circuits) / 300V (Control Circuits)
  • Rated impulse voltage of assembly: Uimp = 6kV (Power Circuits) / 2.5kV (Control Circuits)
  • Rated current of assembly: Ina / Inc = 125A max Rated peak withstand current: Ipk = 105kA conditional (table 7, n = 2.1) Rated short-time withstand current: Icw = 7kA / 0.3 secs : Icw = 4kA / 1.0 sec

Make an enquiry

...
