Hager JK104BDFG

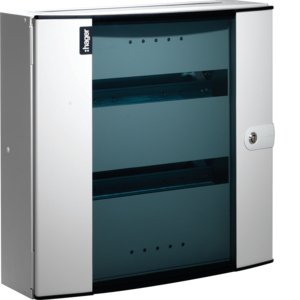

Image is for illustrative purposes only

Hager JK104BDFG 4 Way Side DIN Enclosure Glazed Door, 125A boards

Part: JK104BDFG
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

JK104 32 Module Side DIN box Glazed.

  • Side DIN Enclosure for Primary Boards
  • Side extension boxes allow for the installation of DIN rail mounted devices.
  • Conforms to BS EN 62208.
  • Can be horizontally or vertically attached to distribution boards.
  • All DIN Enclosures supplied with two removable gland plates.

Mounting method :Surface mounted
Colour :Other
Width :465mm
Height :500mm
Depth :132.5mm
Number of rows :2
Type of covering :Door
EMC-version :No
With DIN-rail :Yes
Housing material :Steel
Width in number of modular spacings :32
Type of closure :Other
Degree of protection (IP rating) :IP3X
Transparent cover/door :Yes
With lock :Yes

Make an enquiry

...
