Hager JK008

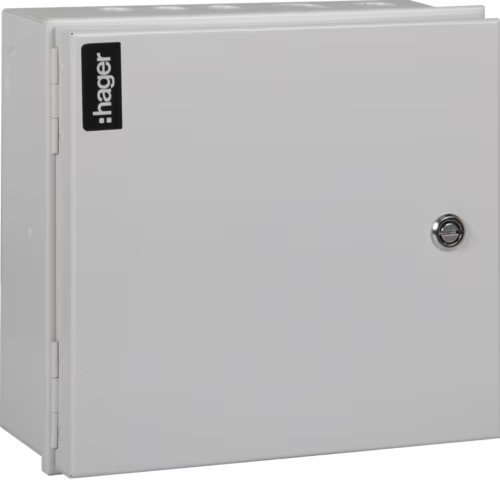

Image is for illustrative purposes only

Hager JK008 8 Module Type A DIN Rail Enclosure Plain Door

Part: JK008
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

8 Mod DIN Rail Box Plain.

  • One, two or three row 8-66 module enclosures, fitted with DIN rails to accept any combination of Hager devices
  • Ample wiring space, with provision to accept RCBO’s.
  • Conforms to BS EN 62208. InA = 63A/100A, Inc = 63A, Icc = 10kA
  • Full complement of earth and neutral terminal bars to accept up to 16mm² cable.
  • Suitable for cable entry on all sides and back.

Mounting method :Surface mounted
Colour :Other
Width :254mm
Height :236mm
Depth :125mm
RAL number :7035
Number of rows :1
Type of covering :Door
EMC-version :No
With DIN-rail :Yes
Housing material :Steel
Width in number of modular spacings :8
Type of closure :Cylinder
Degree of protection (IP rating) :IP30
Transparent cover/door :No
With lock :Yes
