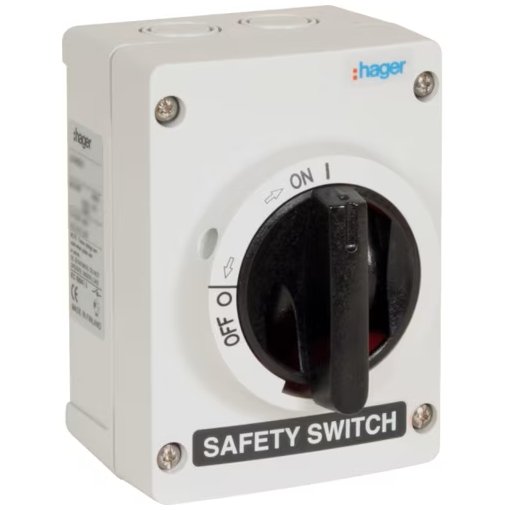

Image is for illustrative purposes only

Hager JG425DC 16A 500V DC-21B IP65 Isolator Switch

Part: JG425DC
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

16A 500V DC-21B IP65 Isolator switch.

  • 16A at 500V DC-21B, 12A at 600V DC-21B 10A at 800V DC-21B, 6A at 440V DC-22B
  • Used in applications such as photovoltaic installations where they isolate the incoming side of the inverter
  • They are supplied in grey with a black handle so that it is easy to distinguish them from the yellow/red A.C. switches used on the outgoing side of the inverter
  • Conforms to: BS EN 60947-3 IP65 to BS EN 60529
  • An interlock ensures that the cover cannot be removed in both the ON and PADLOCKED OFF positions

Rated permanent current Iu :25A
Rated operating voltage :440 to 800V
Degree of protection (IP), front side :IP65
Number of switches :1
Version as main switch :Yes
Version as safety switch :Yes
Version as maintenance-/service switch :Yes
Max. rated operation voltage Ue AC :800V
