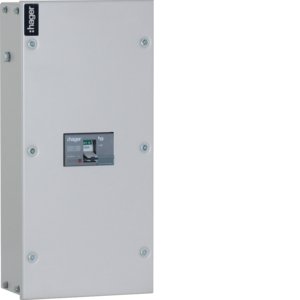

Image is for illustrative purposes only

Hager JG31BM 125A IP31 18kA Single Pole & Neutral Enclosed MCCB

Part: JG31BM
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

125 SPN ENCLOSED MCCB 18kA.

  • The devices are mounted in IP31 enclosures, with removable cable entry plates located on the top and bottom
  • Single & triple pole devices are equipped with fully rated neutral links
  • Conforms to BS EN 61439-2.
  • 63 - 125A: Flexible cable: min 6mm˛, max 70mm˛, Rigid cable: min 6mm˛, max 95mm˛
  • RCD add-on adjustable from 0.03A, 0.1A, 0.3A, 1A, 3A, 6A.
  • Time delay - Instantaneous, 60ms, 150ms, 300ms, 500ms, 1s.

Mounting method :Surface mounted
Width :200mm
Height :420mm
Depth :106mm
Lockable :No
With socket outlet :No
Number of phases :3
Protection :Other
Extension possible :No
With transparent cover :No
Over voltage-/surge protection :Yes
Housing material :Steel
Degree of protection (IP rating) :IP3X
Number of earth leakage switches 300 mA :0
Number of earth leakage switches 30 mA :0
Number of poles main switch :1
Main switch rated current :125A
