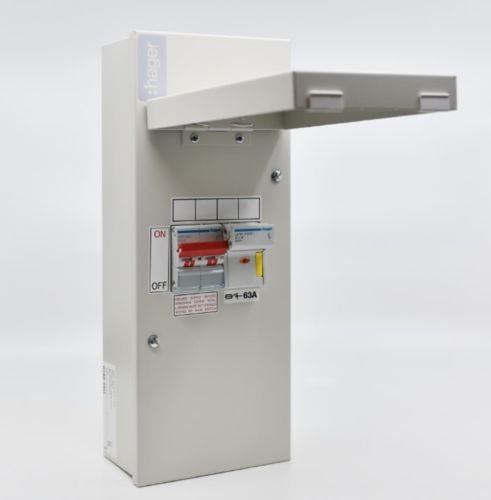

Hager IU44-16D
Image is for illustrative purposes only

Hager IU44-16D 4 Module Metal Unit, 1*100A Isolator + 1*63A Switched Fuse with Door

Part: IU44-16D
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

4 Module Metal Unit 1x100A + 63A switched Fuse with door.

  • 4 Module Metal Unit 1 x 100A Isolator
  • AC22A.
  • Amendment 3 compliant switch fuses have a full metal construction to comply with BS 7671, when used in residential applications
  • Connection Capacity: 50mm˛ Rigid Conductor,
  • 35mm˛ Flexible Conductor
  • 1 x 63A Fuse

Rated permanent current Iu :100A
Number of poles :2
Degree of protection (IP), front side :IP3X
Type of electrical connection of main circuit :Screw connection
Version as main switch :Yes
Max. rated operation voltage Ue AC :240V
Equipped with connectors :Yes
