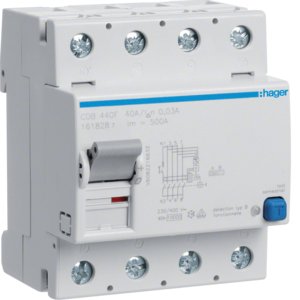

Hager CDB440F RCCB 4P 40A 30mA B
Part: CDB440F
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
RCCB 4P 40A 30mA B Class.
| Mounting method : | DIN rail |
| Recess depth : | 70mm |
| Rated current : | 40A |
| Rated voltage : | 400V |
| Rated insulation voltage Ui : | 500V |
| Number of poles : | 4 |
| Rated fault current : | 30mA |
| Leakage current type : | B |
| Selective protection : | No |
| Short-circuit breaking capacity (Icw) : | 10kA |
| Surge current capacity : | 3kA |
| Pollution degree : | 2 |
| Width in number of modular spacings : | 4 |
| Short-time delayed tripping : | No |
| Frequency : | 50 Hz |
| Degree of protection (IP rating) : | IP20 |
| Connectable conductor cross section solid-core : | 1.5 to 50mm2 |
| Connectable conductor cross section multi-wired : | 1.5 to 16mm2 |
| Ambient temperature during operating : | -25 to 40°C |
| Additional equipment possible : | Yes |
| Rated impulse-withstand voltage (Uimp) : | 4kV |
