Hager CCA216U

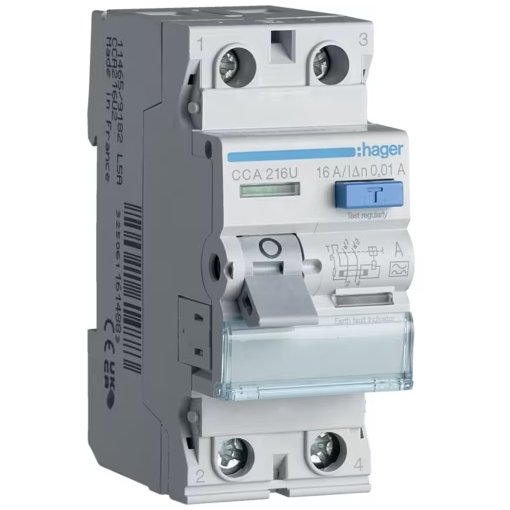

Image is for illustrative purposes only

Hager CCA216U 16A 10mA 2 Pole RCCB Type A

Part: CCA216U
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

RCCB 2P 16A 10mA A Class.

Mounting method :DIN rail
Recess depth :70mm
Rated current :16A
Rated voltage :230V
Rated insulation voltage Ui :500V
Number of poles :2
Rated fault current :10mA
Leakage current type :A
Selective protection :No
Short-circuit breaking capacity (Icw) :6kA
Surge current capacity :0.25kA
Pollution degree :2
Width in number of modular spacings :2
Short-time delayed tripping :No
Frequency :50 Hz
Degree of protection (IP rating) :IP20
Connectable conductor cross section solid-core :1 to 25mm2
Connectable conductor cross section multi-wired :1 to 16mm2
With interlocking device :Yes
Ambient temperature during operating :-25 to 40°C
Additional equipment possible :Yes
Rated impulse-withstand voltage (Uimp) :4kV
