This product is now obsolete. However, this page remains available for information purposes.

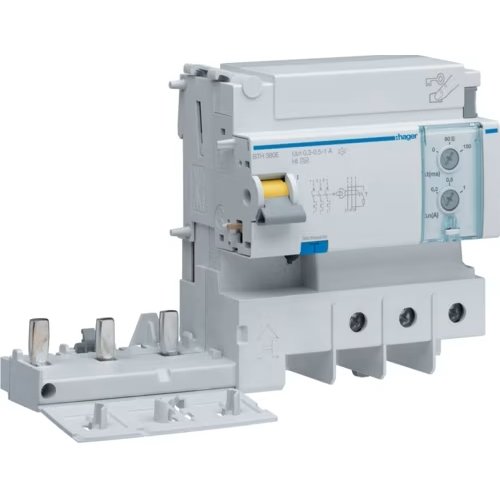

Earth leakage add-on-block 3P 125A Adjustable type AC.
Nominal current : | 125A |
Rated insulation voltage Ui : | 500V |
Number of poles : | 3 |
Delay adjustable : | Yes |
Max. delay time : | 150mS |
Leakage current type : | AC |
Pollution degree : | 3 |
Rated fault current : | 0.3 to 1A |
Nominal voltage : | 230 to 400V |
Frequency : | 50 Hz |
Degree of protection (IP rating) : | IP20 |
Connectable conductor cross section solid-core : | 10 to 70mm2 |
Connectable conductor cross section multi-wired : | 10 to 50mm2 |
Ambient temperature during operating : | -25 to 60°C |
Rated fault current adjustable : | Yes |
Anti-nuisance tripping version : | No |
Rated impulse-withstand voltage (Uimp) : | 6kV |
