Hager BTC280E

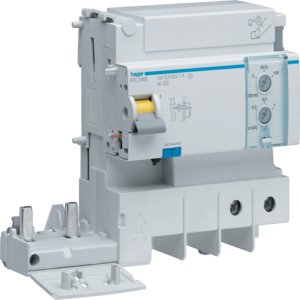

Image is for illustrative purposes only

Hager BTC280E 125A 2 Pole Earth Leakage Add-On Block - Adjustable Type AC

Part: BTC280E
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Earth leakage add-on-block 2P 125A Adjustable type AC.

Nominal current :125A
Rated insulation voltage Ui :500V
Number of poles :2
Delay adjustable :Yes
Max. delay time :150mS
Leakage current type :AC
Pollution degree :3
Rated fault current :0.3 to 1A
Nominal voltage :230 to 400V
Frequency :50 Hz
Degree of protection (IP rating) :IP20
Connectable conductor cross section solid-core :10 to 70mm2
Connectable conductor cross section multi-wired :10 to 50mm2
Ambient temperature during operating :-25 to 60°C
Rated fault current adjustable :Yes
Anti-nuisance tripping version :No
Rated impulse-withstand voltage (Uimp) :6kV
