Hager BE464

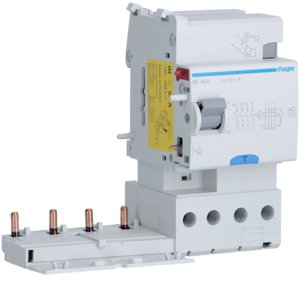

Image is for illustrative purposes only

Hager BE464 63A 100mA 4 Pole Earth Leakage Add-On Block Type AC

Part: BE464
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Earth leakage add-on block 4P 63A 100mA AC Class.

  • Provide earth fault protection when associated with the 10kA (types NBN, NCN, NDN) range of MCBs.
  • Designed to be fitted to the right hand side of 2 and 4 pole MCBs and the completed unit provides protection against overload, short circuit & earth faults.
  • Protection against nuisance tripping
  • All devices have a test facility.
  • Note: Not for use in fixed busbar distribution boards.
  • Nominal voltage 230 - 400V.
  • Selective (time delay) versions are available in 100mA & 300mA.

Nominal current :63A
Rated insulation voltage Ui :500V
Number of poles :4
Delay adjustable :No
Max. delay time :0mS
Leakage current type :AC
Rated fault current :100mA
Nominal voltage :230 to 400V
Frequency :50 Hz
Degree of protection (IP rating) :IP20
Connectable conductor cross section solid-core :1 to 25mm2
Connectable conductor cross section multi-wired :1 to 16mm2
Ambient temperature during operating :-5 to 40°C
Rated fault current adjustable :No
Anti-nuisance tripping version :No
Rated impulse-withstand voltage (Uimp) :4kV
