Hager BE163T

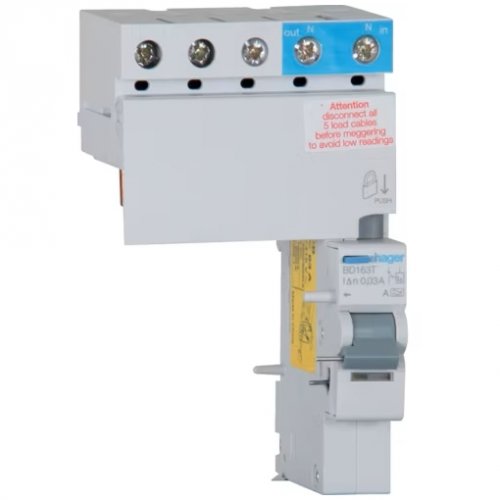

Image is for illustrative purposes only

Hager BE163T 63A 100mA 3 Pole 1 Module Electronic Earth Leakage Add-On Block Type A

Part: BE163T
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Earth leakage add-on-block 3P 63A 100mA A Class 1mod Electronic.

  • Compatible with NBN, NCN & NDN range of MCB devices.
  • Can be used in combination with any Hager 3 pole 10kA MCB up to 63A. Requires the use of the adjacent outgoing way
  • 3 Phase earth leakage protection up to 63A.
  • One module add-on block + MCB combinations suit all Hager distribution boards.
  • BS EN 61009-1 Appendix G.

Nominal current :63A
Rated insulation voltage Ui :500V
Number of poles :3
Delay adjustable :No
Max. delay time :0mS
Leakage current type :A
Rated fault current :100mA
Nominal voltage :240 to 415V
Frequency :50 Hz
Degree of protection (IP rating) :IP20
Connectable conductor cross section solid-core :1 to 25mm2
Connectable conductor cross section multi-wired :1 to 16mm2
Ambient temperature during operating :-5 to 40°C
Rated fault current adjustable :No
Anti-nuisance tripping version :No
Rated impulse-withstand voltage (Uimp) :4kV
