Hager BDC380E

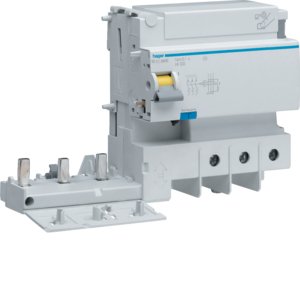

Image is for illustrative purposes only

Hager BDC380E 125A 30mA 3 Pole Earth Leakage Add-On Block Type AC

Part: BDC380E
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Earth leakage add-on-block 3P 125A 30mA type AC.

Nominal current :125A
Rated insulation voltage Ui :500V
Number of poles :3
Delay adjustable :No
Max. delay time :0mS
Leakage current type :AC
Pollution degree :3
Rated fault current :30mA
Nominal voltage :230 to 400V
Frequency :50 Hz
Degree of protection (IP rating) :IP20
Connectable conductor cross section solid-core :10 to 70mm2
Connectable conductor cross section multi-wired :10 to 50mm2
Ambient temperature during operating :-25 to 60°C
Rated fault current adjustable :No
Anti-nuisance tripping version :No
Rated impulse-withstand voltage (Uimp) :6kV
