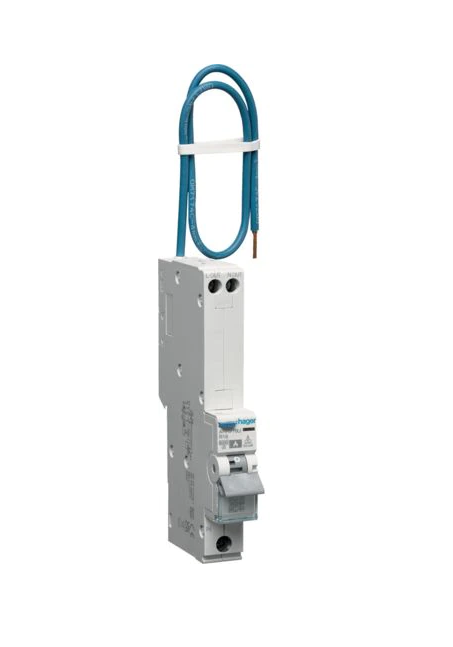

Hager ARM916U 16A 6kA B Curve MCB with Dangerous Arc Detection 1 Module

Name: Hager ARM916U 16A 6kA B Curve MCB with Dangerous Arc Detection 1 Module
Brand: Hager
SKU: 1284
Price: 99999 GBP
Availability: InStock

Part: ARM916U

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Hager 16A 6kA B Curve MCB with Dangerous Arc Detection 1 Module, comes with ProTools diagnostic software.

ProTools diagnostic software comes as standard
Comes equipped with Bluetooth functionality to enable in situ software upgrades
Devices have a self-test feature

Voltage type :	AC
Recess depth :	70mm
Rated current :	16A
Rated voltage :	230V
Frequency :	50Hz
Tripping characteristic (type/curve) :	B
Number of poles :	2
Current limiting class :	3
Over voltage category :	3
Pollution degree :	2
Width in number of modular spacings :	1
Degree of protection (IP rating) :	IP20
Concurrently switching N-neutral :	No
Rated short-circuit breaking capacity EN 60898 :	6kA
Additional equipment attached at delivery :	Fire protection switch
Construction size (according to DIN 43880) :	3
