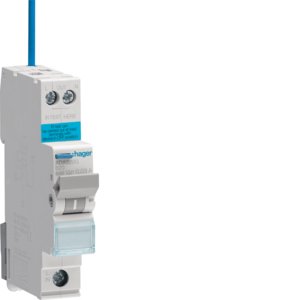

Hager ADA320G
Image is for illustrative purposes only

Hager ADA320G 20A 6kA B Curve Type A Single Pole, 1 Module 30mA Reduced Height Electronic RCBO

Part: ADA320G
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

RCBO Electronic 1P 6kA B Curve -20A, 30mA Type A(AC & Pulsating DC Sensitive)1M.

    • Protection Devices
    • Protection devices which combine the overcurrent functions of an MCB with the earth fault functions of an RCCB.
    • Connection capacity: Rigid = 16mm², Flexible = 10mm²
    • Flying neutral lead: 300mm
    • Single pole & solid neutral
    • Type A (Pulsating DC Sensitive)
    • Complies with BS EN 61009-1, BS IEC 1009-2-2
    • Operational Voltage: 127-230V AC
    • Sensitivity: 30mA
    • Height Reduced

Voltage type :AC
Recess depth :70mm
Rated current :20A
Rated voltage :230V
Tripping characteristic (type/curve) :B
Rated insulation voltage Ui :250V
Rated fault current :0.03A
Leakage current type :A
Surge current capacity :3kA
Current limiting class :3
Over voltage category :3
Pollution degree :3
Width in number of modular spacings :1
Frequency :50 Hz
Degree of protection (IP rating) :IP20
Number of protected poles :1
Concurrently switching N-neutral :No
With interlocking device :Yes
Ambient temperature during operating :-20 to 70°C
Number of poles (total) :1
Anti-nuisance tripping version :No
Rated impulse-withstand voltage (Uimp) :4kV
Rated short-circuit breaking capacity Icn according to EN 61009-1 :6kA
Disconnection characteristic :Undelayed
