Hager ADA140G

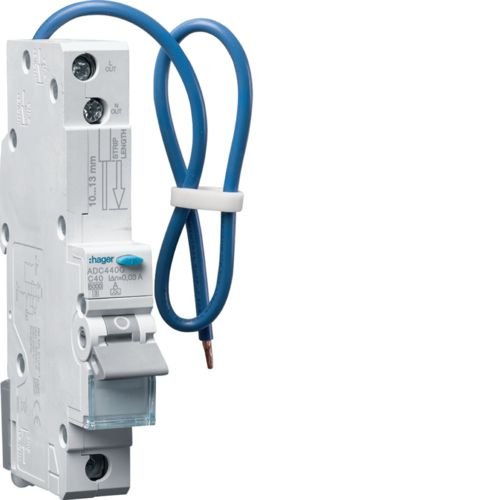

Image is for illustrative purposes only

Hager ADA140G 40A 6kA B Curve Type A Single Pole, 1 Module 30mA Electronic RCBO

Part: ADA140G
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

RCBO Electronic 1M 1P 6kA B-40A 30mA A Class.

  • Protection Devices
  • Protection devices which combine the overcurrent functions of an MCB with the earth fault functions of an RCCB.
  • Connection capacity: Rigid = 16mm², Flexible = 10mm²
  • Flying neutral lead: 300mm
  • Single pole & solid neutral
  • Type A (Pulsating DC Sensitive)
  • Complies with BS EN 61009-1, BS IEC 1009-2-2
  • Operational Voltage: 127-230V AC
  • Sensitivity: 30mA
  • Height Full

Voltage type :AC
Recess depth :70mm
Rated current :40A
Rated voltage :240V
Tripping characteristic (type/curve) :B
Rated insulation voltage Ui :250V
Rated fault current :0.03A
Leakage current type :A
Surge current capacity :3kA
Current limiting class :3
Over voltage category :3
Pollution degree :2
Width in number of modular spacings :1
Frequency :50 Hz
Degree of protection (IP rating) :IP20
Number of protected poles :1
Concurrently switching N-neutral :No
Connectable conductor cross section solid-core :1 to 25mm2
Connectable conductor cross section multi-wired :1 to 16mm2
With interlocking device :Yes
Ambient temperature during operating :-5 to 60°C
Number of poles (total) :1
Anti-nuisance tripping version :No
Rated impulse-withstand voltage (Uimp) :4kV
Rated short-circuit breaking capacity Icn according to EN 61009-1 :6kA
Disconnection characteristic :Undelayed
