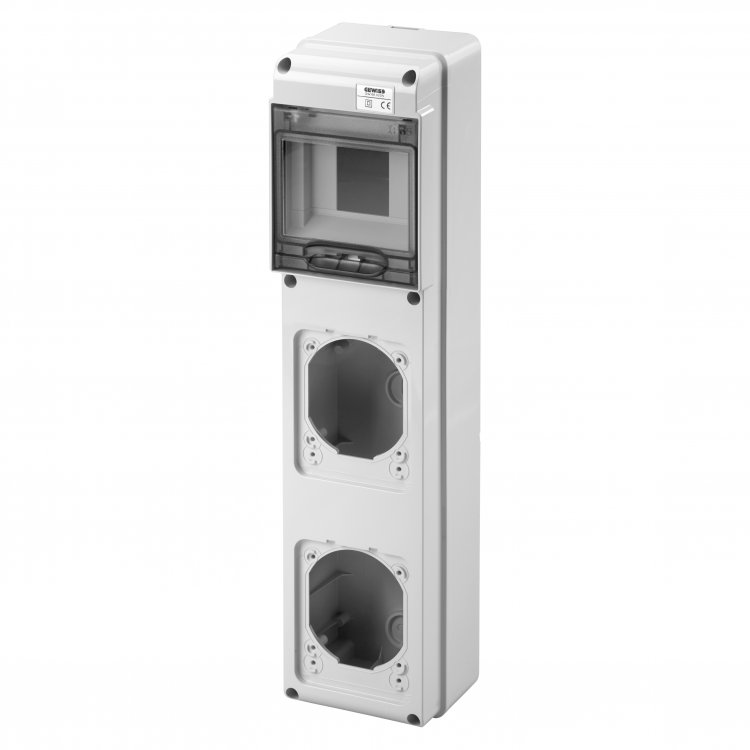

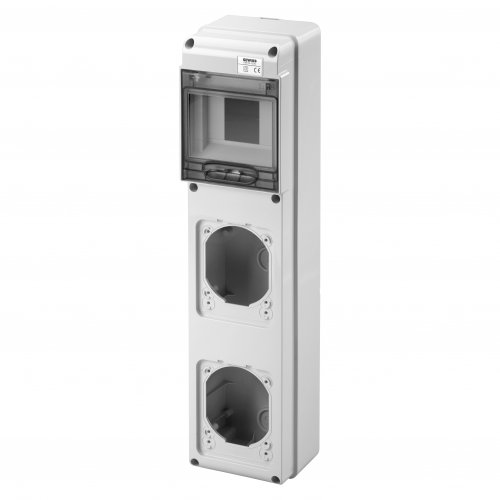

Gewiss GW68020N Q-DIN distribution, 5 modules, 2 flange IEC 309 16/32A IP44/67 - IP65
Image is for illustrative purposes only

Gewiss GW68020N Q-DIN distribution, 5 modules, 2 flange IEC 309 16/32A IP44/67 - IP65

Part: GW68020N
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

Colour :Grey RAL 7035
IP degree :IP65
No. of modules EN 50022 :5
Houseable socket :2 IEC 309 16/32A IP44/67
Installation type :Surface-mounting
Dispersible power A (W) :10
Dispersible power B (W) :37
Accordance with Standards :EN 62208
Glow Wire Test :650 °C
Mechanical resistance :IK08
Operating temperature :-25 +40 °C
Thermo-pressure with ball :70 °C
Insulation class :II
Version :Empty
