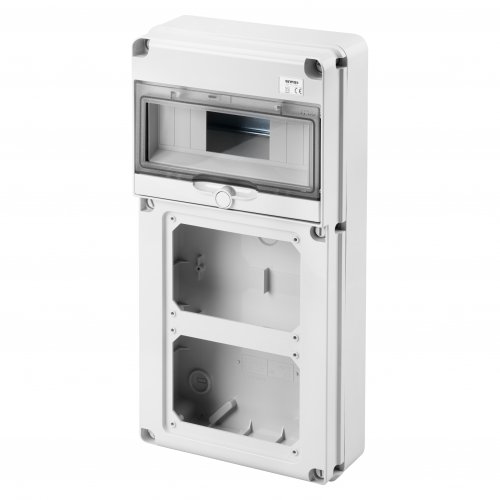

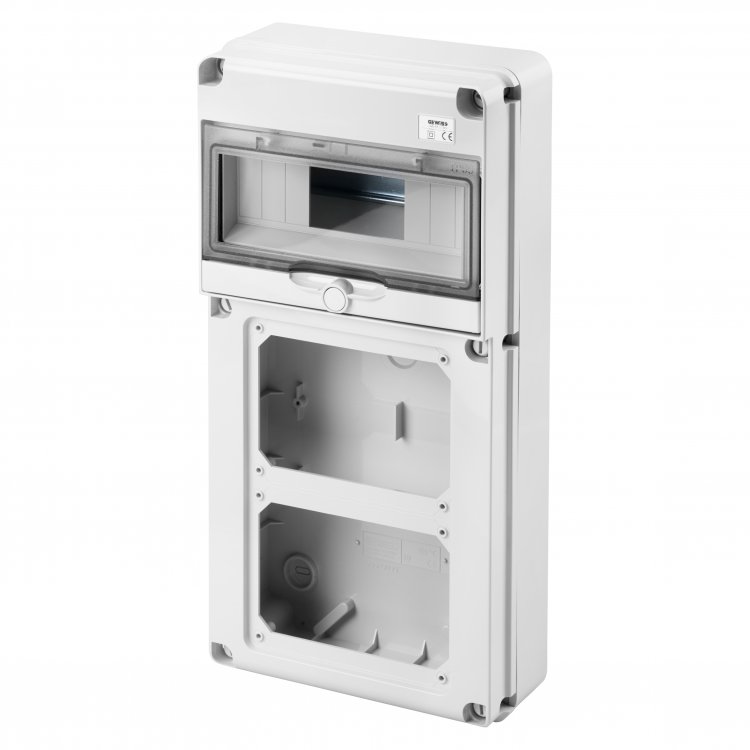

Gewiss GW68019N Q-DIN distribution, 10 modules, 2 flange IB horizontal 16/32A SBF - IP65
Image is for illustrative purposes only

Gewiss GW68019N Q-DIN distribution, 10 modules, 2 flange IB horizontal 16/32A SBF - IP65

Part: GW68019N
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

Colour :Grey RAL 7035
IP degree :IP65
No. of modules EN 50022 :10
Houseable socket :2 IB Horiz. 16/32A SBF IP44 overlapping
Installation type :Surface-mounting
Dispersible power A (W) :16
Dispersible power B (W) :42
Accordance with Standards :EN 62208
Glow Wire Test :650 °C
Mechanical resistance :IK08
Operating temperature :-25 +40 °C
Thermo-pressure with ball :70 °C
Insulation class :II
Version :Empty
