FuseBox RTAMB20

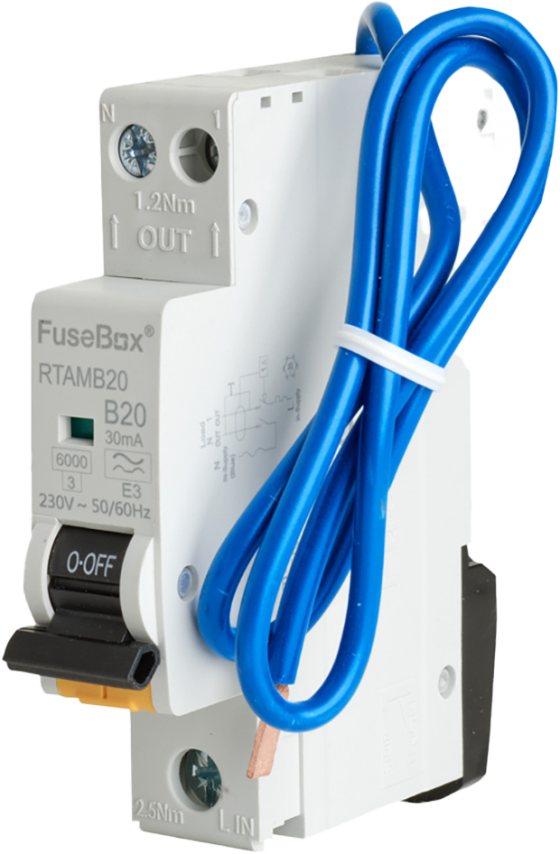

Image is for illustrative purposes only

FuseBox RTAMB20 MINI 20A B RCBO 2P 30mA 6kA TYPE A

Part: RTAMB20
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

Standard :IEC 61009-1, IEC 61009-2-2
Number of poles :1P+N (SWITCHED)
Rated voltage (Un/AC) :230V
Frequency :50/60
Rated breaking capacity (Icn) :6000A
Rated current (In) :20A
Tripping characteristics :B CURVE 3-5In
Residual current characteristics :TYPE A (AC AND PULSATING DC UP TO 6mA)
Residual current operating current :30mA
Mechanical endurance :10000
Protection degree :IP20
Maximum terminal capacity :1-16mm² L IN / 1-10mm² OUT N L
Recommended tightening torque :2.5Nm L IN / 1.2Nm OUT N L
Flying neutral cable length :450mm
Mounting :35mm din rail
Material :PA6 (Nylon 6)
Weight (1pc) kg :0.144

Make an enquiry

...
