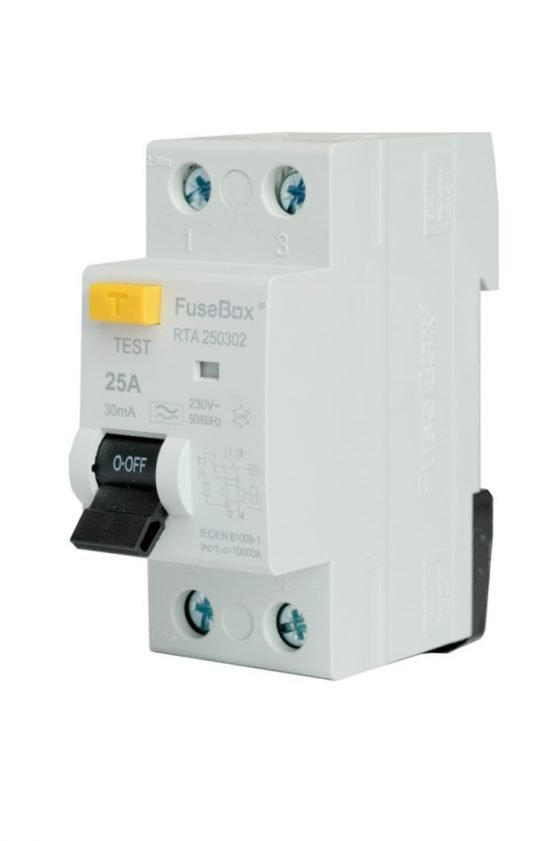

Standard : | IEC/EN 61009-1 |
Number of poles : | 2P |
Rated voltage (Un/AC) : | 230V |
Frequency : | 50/60 |
Rated breaking capacity (Icn) : | 6000A |
Rated current (In) : | 25A |
Residual current characteristics : | TYPE A (AC AND PULSATING DC UP TO 6mA) , TYPE S (TIME DELAYED) |
Mechanical endurance : | 10000 |
Protection degree : | IP20 |
Maximum terminal capacity : | 25mm˛ (UP TO 80A) / 35mm˛ (100A) |
Recommended tightening torque : | Poles are not polarity sensitive (i.e. Neutral can be connected on the LHS and Line on RHS or vice versa). RCDs can be connected with the LOAD to the top or the bottom. |
Mounting : | 35mm din rail |
Material : | PA6 (Nylon 6) |
Weight (1pc) kg : | 0.23 |
