FuseBox RTA064530B

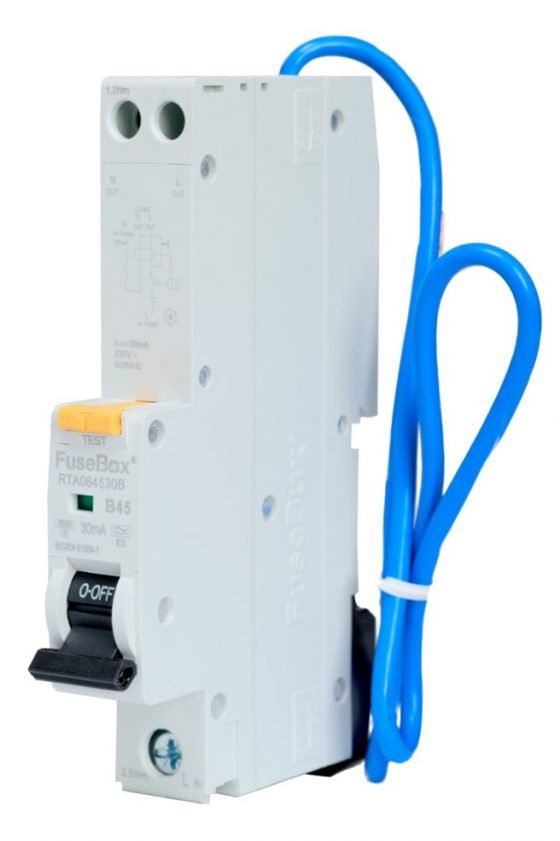

Image is for illustrative purposes only

FuseBox RTA064530B 45A B RCBO 30mA 6kA TYPE A

Part: RTA064530B
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

Standard :IEC/EN 61009-1
Number of poles :1P + N
Rated voltage (Un/AC) :230V
Frequency :50/60
Rated breaking capacity (Icn) :6000A
Rated current (In) :45A
Tripping characteristics :B CURVE 3-5In
Residual current characteristics :TYPE A (AC AND PULSATING DC UP TO 6mA)
Mechanical endurance :10000
Protection degree :IP20
Maximum terminal capacity :1-16mm² L IN / 1-10mm² OUT N L
Recommended tightening torque :2.5Nm L IN / 1.2Nm OUT N L
Flying neutral cable length :450mm
Mounting :35mm din rail
Material :PA6 (Nylon 6)
Weight (1pc) kg :0.2

Make an enquiry

...
