FuseBox RTA060630B

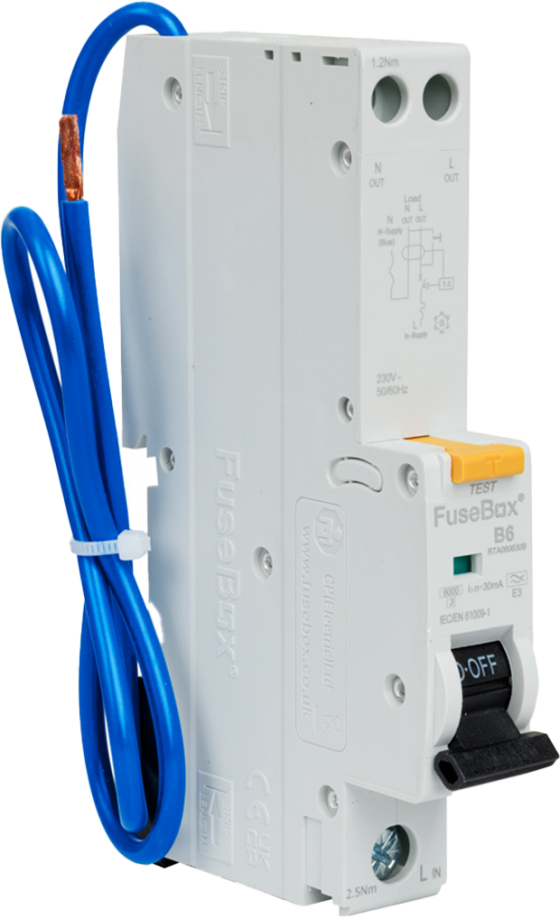

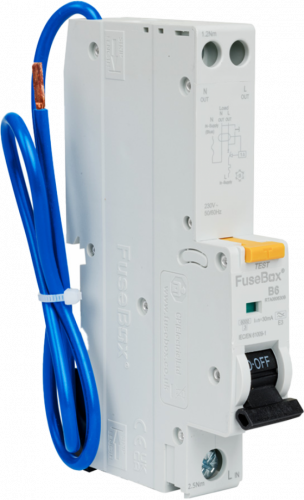

Image is for illustrative purposes only

FuseBox RTA060630B 6A B RCBO 30mA 6kA TYPE A

Part: RTA060630B
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

Miniature cicuit breaker suitable for use in FuseBox consumer units.

Standard :IEC/EN 61009-1
Number of poles :1P + N
Rated voltage (Un/AC) :230V
Frequency :50/60
Rated breaking capacity (Icn) :6000A
Rated current (In) :6A
Tripping characteristics :B CURVE 3-5In
Residual current characteristics :TYPE A (AC AND PULSATING DC UP TO 6mA)
Mechanical endurance :10000
Protection degree :IP20
Maximum terminal capacity :1-16mm² L IN / 1-10mm² OUT N L
Recommended tightening torque :2.5Nm L IN / 1.2Nm OUT N L
Flying neutral cable length :450mm
Mounting :35mm din rail
Material :PA6 (Nylon 6)
Weight (1pc) kg :0.2
