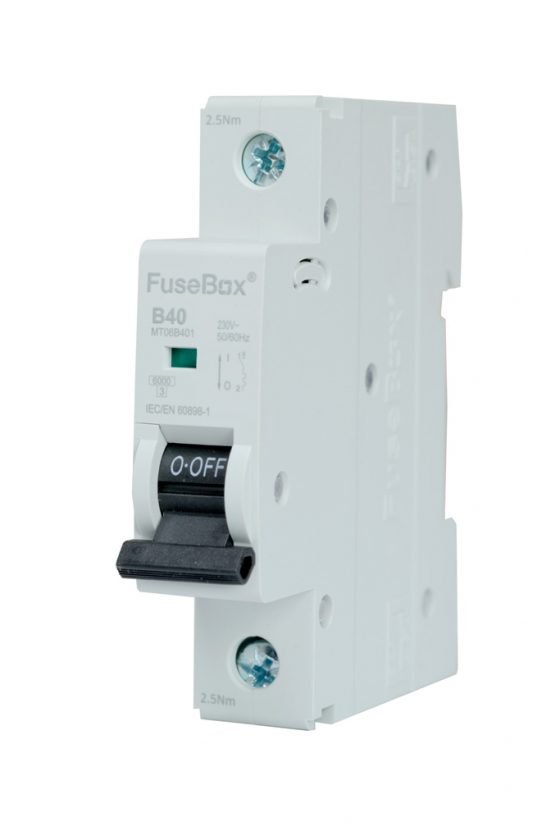

Miniature cicuit breaker suitable for use in FuseBox consumer units.
Standard : | IEC/EN 60898-1 |
Number of poles : | 1 |
Rated voltage (Un/AC) : | 230V |
Frequency : | 50/60 |
Rated breaking capacity (Icn) : | 6000A |
Rated current (In) : | 40A |
Tripping characteristics : | B CURVE 3-5In |
Mechanical endurance : | 10000 |
Protection degree : | IP20 |
Maximum terminal capacity : | 16mm2 |
Recommended tightening torque : | 2.5Nm |
Tripping type : | Thermal magnetic |
Mounting : | 35mm din rail |
Material : | PA6 (Nylon 6) |
Weight (1pc) kg : | 0.12 |
