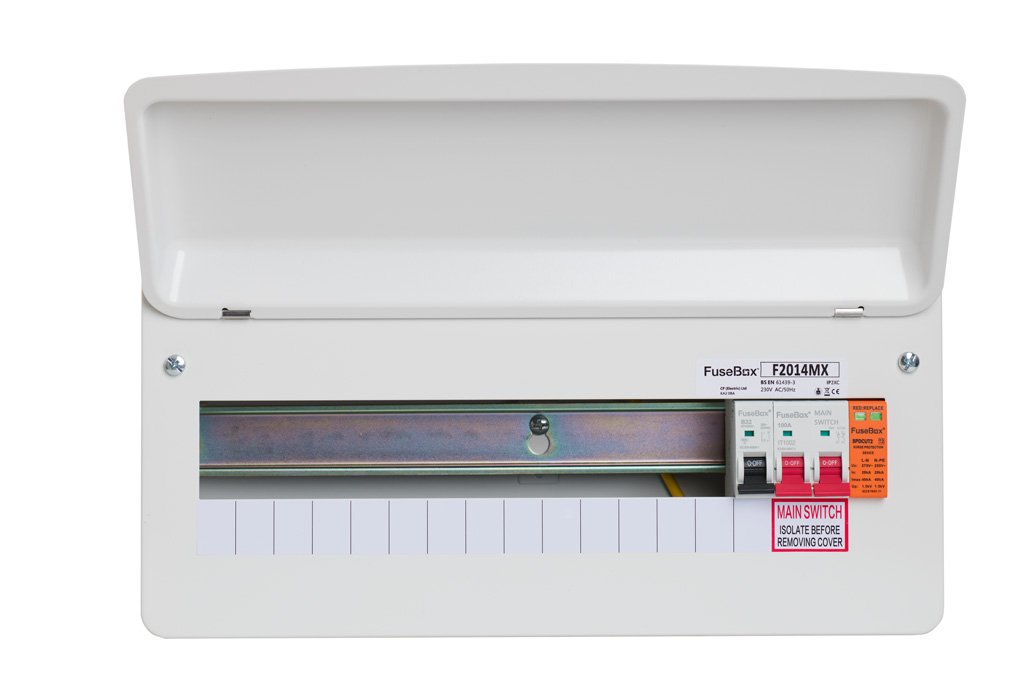

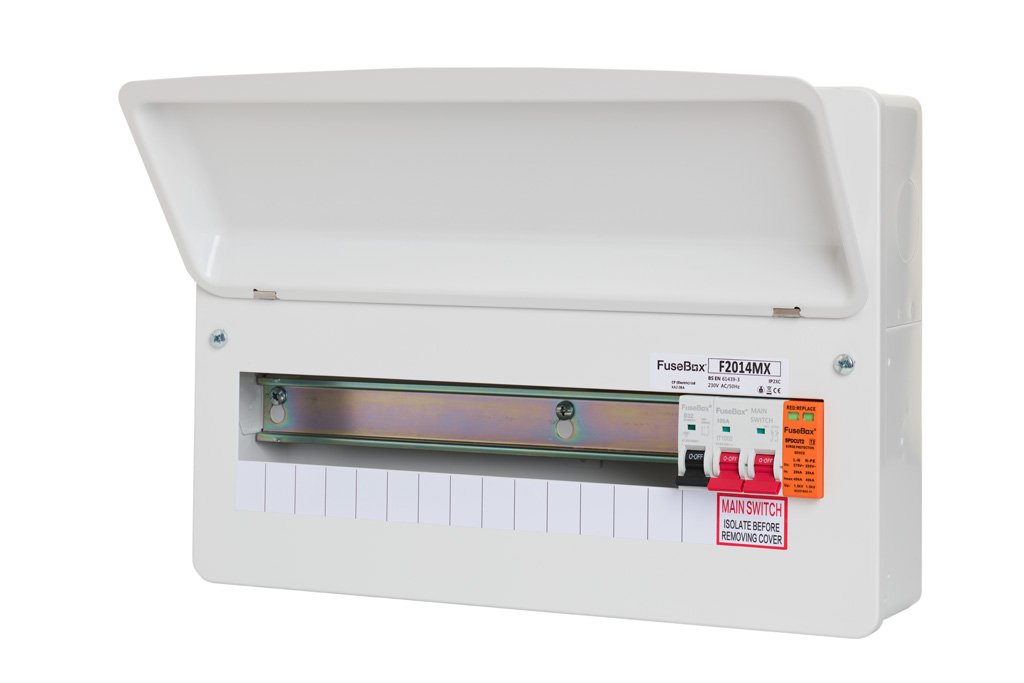

FuseBox F2014MX 14 Usable Way Main Switch Board with Surge Protection Device

FuseBox F2014MX

The FuseBox range of circuit protection/metal consumer unit and protection devices offers flexible versatile solutions for 18th Edition electrical installations.

The FuseBox surge protection metal consumer units with a 100A rated MS (Main Switch) incomer and T2 SPD (Surge Protection Device). Surge protection consumer units provide formidable circuit protection against surge and overload. When fitted with additional RCBOs (Residual Current Circuit Breaker with Overload Protection) as an outgoing device, you also get residual current protection.

• Supplied with a 100A MS (Main Switch), busbar and din rail

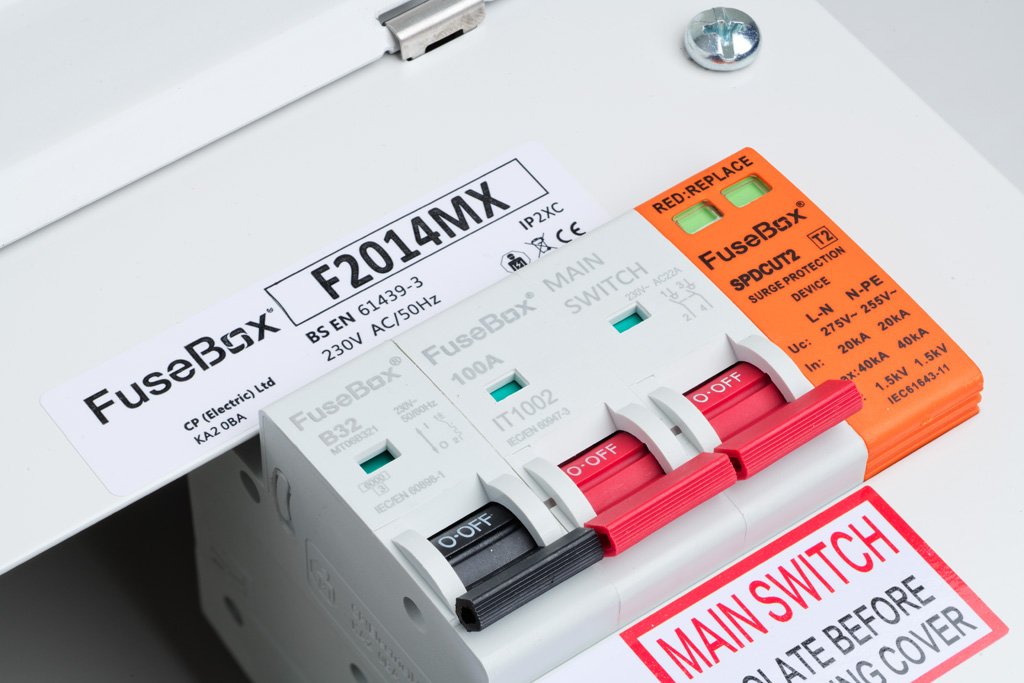

• Built in T2 Fusebox Surge Protection Device incomer which is MCB protected
• Fusebox 14 Usable Way Consumer Unit
• Captive Screws now standard on the front cover
• Grommet Strip now included
• Label pack
• 18th Edition Regulation Overload and Surge Protection compliant
• Amendment 3 non-combustible, metal enclosure
• The MS takes up 2 modules
• The MCB used to protect the SPD takes up 1 module
• Now includes the ACCF tail clamp with all models apart from the double row 21 and 44 way boards
• 1mm electro-galvanised steel (zinc)
• Earth and neutral terminal bars at the top
• Finish: White RAL9001 powder-coated finish
• Enclosure: Steel
• Approved to:BS EN61439-3

Dimensions:  H 263mm x W378mm x D116mm
