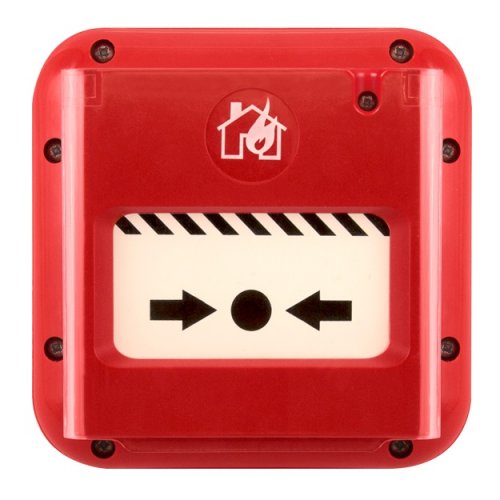

esp SCP2RIP67 MAGfire manual call point, IP67
Image is for illustrative purposes only

esp SCP2RIP67 MAGfire manual call point, IP67

Part: SCP2RIP67
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Resettable call point
  • Certified to EN54-11-A
  • IP67 Rated

Dimensions (mm):114 x 114 x 80
Finish:Red
Materials:ABS
Mounting:Surface Only
Type of the frangible element:A
Weight (Kg):0.262
Warranty (Years):3
Operating Voltage (V DC):9 - 30
Nominal Operating Voltage (V DC):24
Cable Size (mm²):0.4 - 2.0 (Twin)
Current Consumption in alarm state (mA):38 (24V)
Wiring Type:4-Wire Conventional
Ingress Protection:IP67
Operating Temperature (°C):-10 to +60
Relative Humidity Resistance (%):93 (±3) (@40°C)
Compatible Products:Compatible with MAG2, MAG2P, MAG4, MAG4P, MAG816 and MAGPRO-CZM
Standards:BS EN 54-11, EN60529
