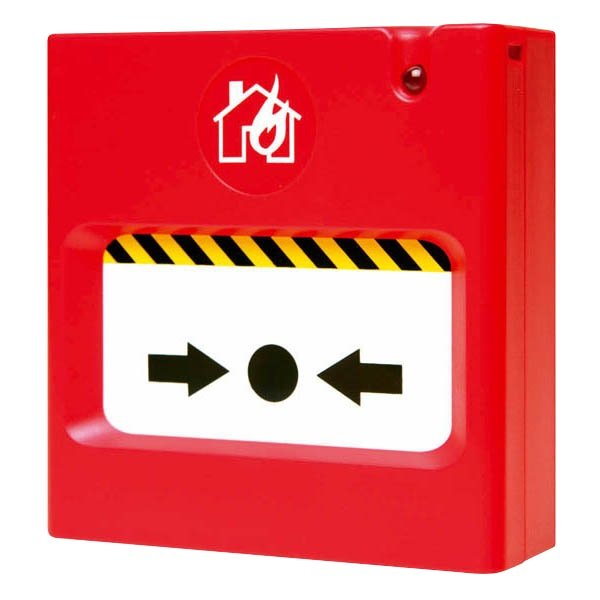

esp SCP2R MAGfire resettable call point
Image is for illustrative purposes only

esp SCP2R MAGfire resettable call point

Part: SCP2R
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Surface or flush mounting
  • Complete with surface back box
  • Spare cover available - SCP2R-CVR

Dimensions (mm):90 x 57 x 90
Finish:Red
Materials:ABS
Mounting:Surface or Flush
Type of the frangible element:A
Weight (Kg):0.15
Warranty (Years):3
Operating Voltage (V DC):9 - 30
Nominal Operating Voltage (V DC):24
Cable Size (mm²):0.4 - 2.0 (Twin)
Current Consumption in alarm state (mA):38 (24V)
Wiring Type:4-Wire Conventional
Ingress Protection:IP40
Operating Temperature (°C):-10 to +60
Relative Humidity Resistance (%):93 (±3) (@40?C)
Compatible Products:Compatible with MAG2, MAG2P, MAG4, MAG4P, MAG816 and MAGPRO-CZM
Standards:BS EN 54-11
