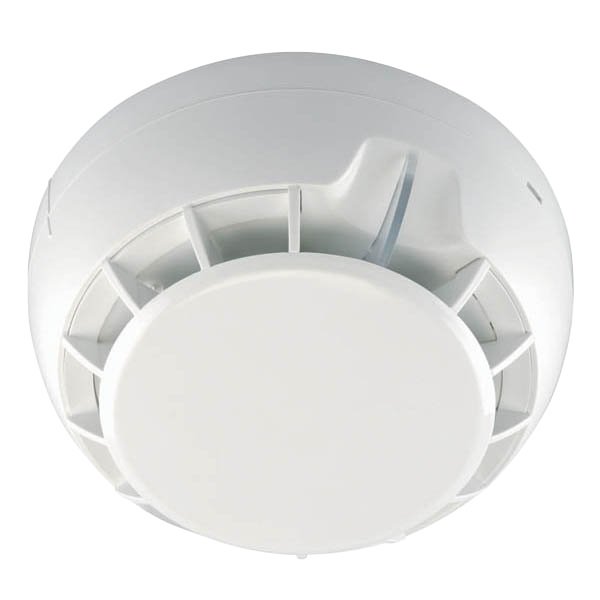

esp RHD212 MAGfire Rate of rise heat detector with relay base, 12VDC

Part: RHD212

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

Dimensions (mm):	ø102 x 48 (Including Base)
Finish:	White
Materials:	ABS
Test Facility:	Heat Source
Class:	A1R
Weight (Kg):	0.16
Warranty (Years):	3
Operating Voltage (V DC):	9 - 30
Cable Size (mm²):	0.4 - 2.0 (Twin)
Alarm Current @ 12V (mA):	29
Standby Current @ 12v (μA):	<50
Wiring Type:	4-Wire Conventional
Output Relay Rating:	30V/0.5A
Ingress Protection:	IP30
Operating Temperature (°C):	-10 to +60
Relative Humidity Resistance (%):	93 (±3) (@40°C)
Compatible Products:	Compatible with MAG2, MAG2P, MAG4, MAG4P, MAG816 and MAGPRO-CZM
Standards:	BS EN 54-5
