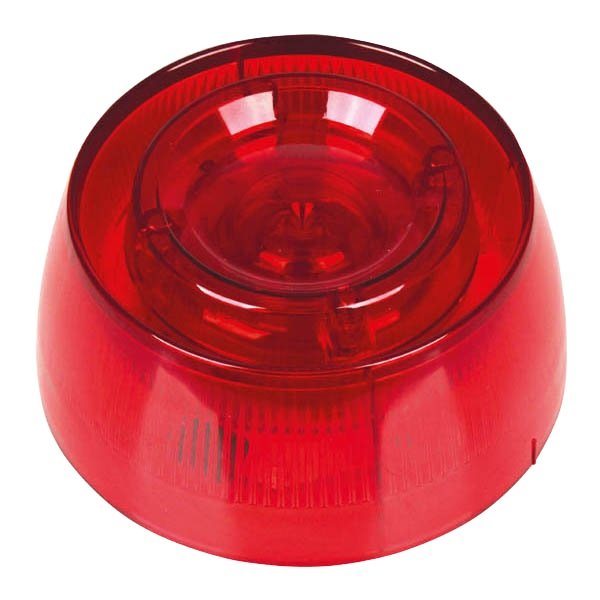

esp MAGPRO-WSS MAGfire Addressable sounder strobe
Image is for illustrative purposes only

esp MAGPRO-WSS MAGfire Addressable sounder strobe

Part: MAGPRO-WSS
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Piezo sounder
  • Adjustable sound level - 92dB/100 dB
  • 32 sound types selectable from the panel
  • Loop synchronization & powered
  • Certified to EN54-3
  • Base MAGPRO-DB ordered separately

Dimensions (mm):ø116 x 55 (Without Base)
Finish:Red, Transparent
Materials:SAN (Styrene Acrylonitrile Resin)
Strobe Colour:Red
Flash Rate:1Hz
Volume Modes:2 (Low & High)
Number of Available Tones:32
Weight (Kg):0.183
Warranty (Years):3
Operating Voltage (V DC):15 - 32
Nominal Consumption Standby (μA):<500 (@27V DC)
Maximum Consumption In Activation - Tone Type 27 - High Volume Level (mA):<13
Maximum Consumption In Activation - Tone Type 27 - Low Volume Level (mA):<5
Sound Output @ 1m (Low) (db):75
Sound Output @ 1m (High) (db):95+
Protocol Type:Custom (Closed)
Operating Temperature (°C):-10 to +50
Relative Humidity Resistance (%):93 (±3) (@40°C)
Compatible Products:Compatible with MAGPRO-DB, MAGPRO-PROG and MAGPRO-WSBIP65
Standards:BS EN 54-3
