esp MAGPRO-WSBIP65 MAGfire Addressable fire alarm sounder IP65 base

Part: MAGPRO-WSBIP65

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

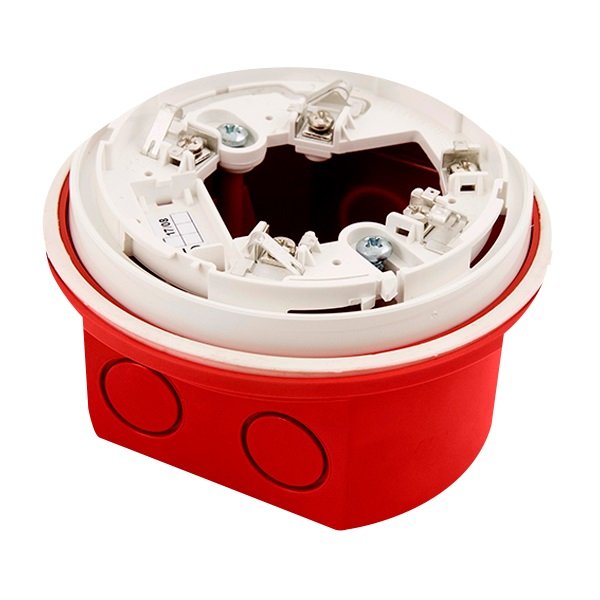

Waterproof deep base for MAGPRO addressable sounders
Only for use with models; MAGPRO-WS, WSS and WSS23
Robust IP65 Waterproof base suitable for wall mounting in aggressive outdoor environments
Includes 2x IP65 cable glands, O-ring & gasket for secure installation

Dimensions (mm):	ø120 x 68
Finish:	Red Deepbase & (white) MAGPRO-DB
Materials:	ABS
Weight (Kg):	0.14
Warranty (Years):	3
Operating Voltage (V DC):	15 - 30
Cable Size (mm²):	0.4 - 2.0
Wiring Type:	Analogue Addressable (MAGPRO)
Ingress Protection:	IP65
Operating Temperature (°C):	-10 to +60
Relative Humidity Resistance (%):	93 (±3) (@40°C)
Compatible Products:	MAGPRO-WS Addressable Wall Sounder
:	MAGPRO-WSS Addressable Wall Sounder Strobe
:	MAGPRO-WSS23 Addressable Wall Sounder Strobe Certified to EN54-23
