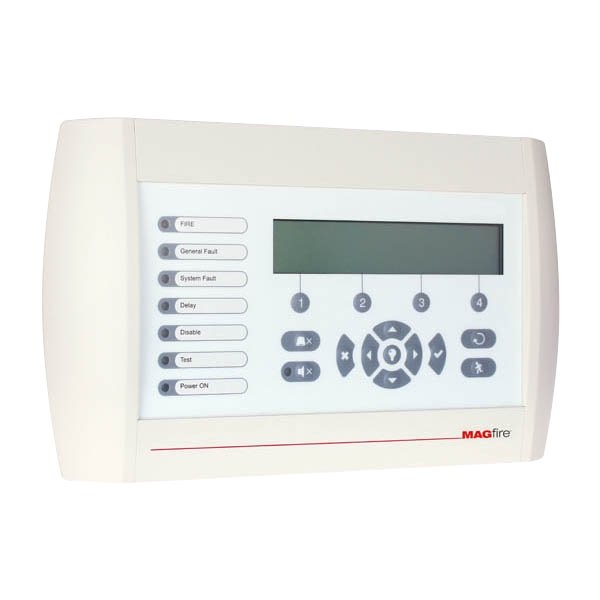

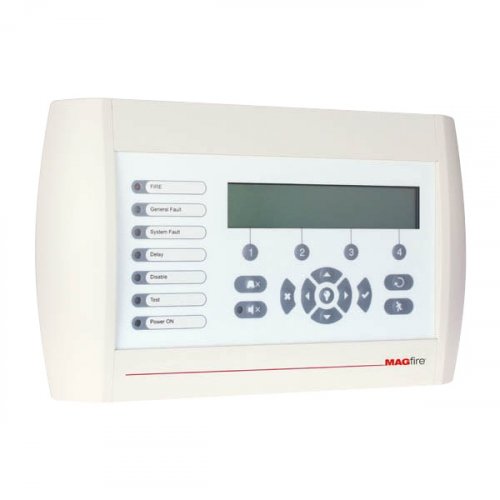

esp MAGPRO-REP MAGfire Addressable repeater panel

Part: MAGPRO-REP
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Wall-mount design
  • Only compatible with MAGPRO16 Ver2.8 and higher
  • Compatible with MAGPRO96
  • Requires 24VDC External Power Supply
  • Max consumption of 0.11A (110mA)
  • Each panel in network will require a MAGPRO-NIC
  • Maximum of 32 panels in the network
  • 1000m distance from MAGPRO-REP to MAGPRO Panel
  • Dimensions 200 x 330 x 48mm
  • Ring type network
  • 10,000 event log within the repeater

Dimensions (mm):200 x 330 x 48
Maximum Number of Events in Log:10000
Maximum Distance to Fire Panel (m):1000
Maximum Number of Networked Panels:32
Type of Network:Loop
Connection for Firmware Update(s):Micro USB
Compatibility - MAGPRO16:Version 2.8 or Higher
Compatibility - MAGPRO96:Version 4.2 or Higher
Weight (Kg):0.77
Warranty (Years):3
Operating Voltage (V DC):24 (± 4)
Maximum Cable Size (mm²):2.5
Maximum Current Consumption:0.11A
Communication Type:RS-485
Ingress Protection:IP40
Operating Temperature (°C):+5 to +50
Relative Humidity Resistance (%):95
Compatible Products:Compatible with MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G (CIE Requires MAGPRO-NIC)
Standards:BS EN 54-2
