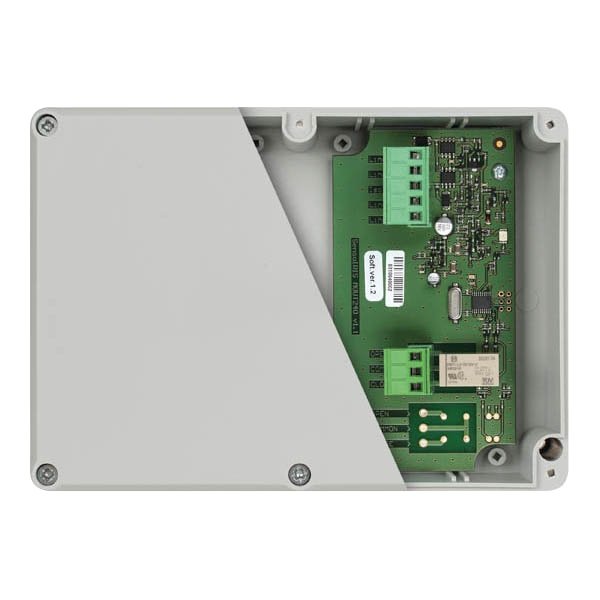

esp MAGPRO-R MAGfire Mains relay output module with isolator
Image is for illustrative purposes only

esp MAGPRO-R MAGfire Mains relay output module with isolator

Part: MAGPRO-R
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Suitable for control of 240VAC voltage circuits up to 5A
  • Loop powered
  • Built in isolator
  • Compliant to EN54-18
  • Example application - AC 240V door magnet override

Dimensions (mm):126 x 176 x 57
Weight (Kg):0.23
Warranty (Years):3
Operating Voltage (V DC):15 - 32
Maximum Cable Size (mm²):2.5
Current consumption in STAND-BY mode (μA):175 (@27V DC)
Nominal consumption during communication (μA):220
Current consumption with LED ON (mA):4
Wiring Type:Analogue Addressable (MAGPRO)
Number of Outputs:Single Double Pole
Output Relay Rating:250V AC @ 5A
Protocol Type:Custom (Closed)
Ingress Protection:IP40
Operating Temperature (°C):-10 to +60
Relative Humidity Resistance (%):93 (±3) (@40?C)
Compatible Products:Compatible with MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G
Standards:BS EN 54-17, BS EN 54-18
