esp MAGPRO-PROG MAGfire Programming tool for MAGPRO

Part: MAGPRO-PROG

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

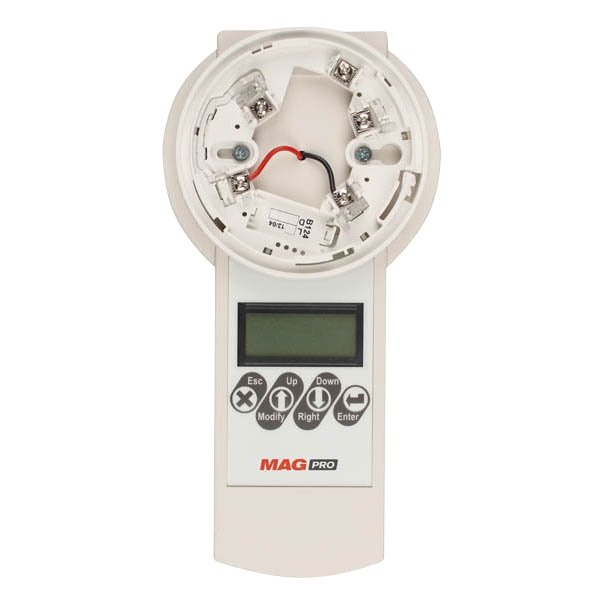

MAGPRO-PROG Programmer is a programming tool for setting addresses of MAGPRO devices (detectors, modules, call points and sounders), supporting communication protocol TTE.

The programmer is designed for reading and writing addresses, and setting of parameters to MAGPRO series addressable detectors: T110, T110IS, S130, S130IS, M140 i M140140IS.

Built in MAGPRO-DB standard base
Mains or battery powered (4 x 1.5V not included)
Programming cable included

Dimensions (mm):	255 x 102 x 65
Range Of Addresses:	0 - 250
Weight (Kg):	0.26
Warranty (Years):	3
Operating Voltage (V DC):	4.2 - 8
Current Consumption - Standby (BackLight On)(mA):	28 (± 2) (@6V DC)
Current Consumption - Standby (BackLight Off)(mA):	22 (± 2) (@6V DC)
Communication Consumption(mA):	60 (± 5) (@6V DC)
Back-up Power Supply:	4 x 1.5V - AA Size Batteries
Protocol Type:	Custom (Closed)
Operating Temperature (°C):	-20 to +70
Relative Humidity Resistance (%):	93 (±3) (@40?C)
Compatible Products:	Compatible with MAGPRO Series Loop Devices
