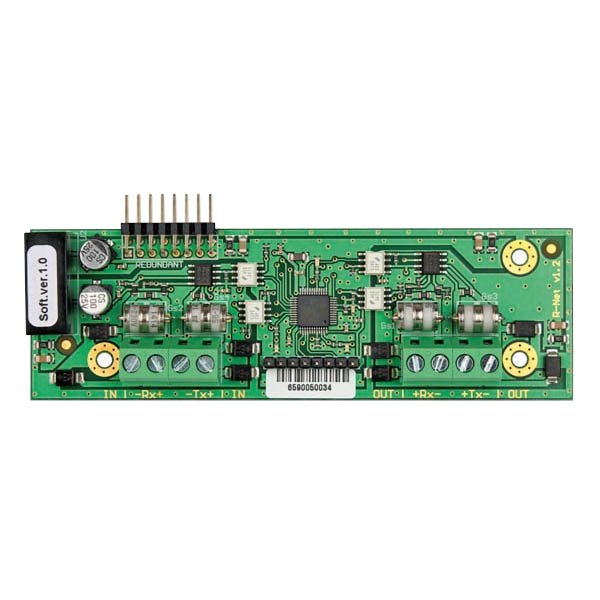

esp MAGPRO-NIC Network interface card
Image is for illustrative purposes only

esp MAGPRO-NIC MAGfire Network interface card

Part: MAGPRO-NIC
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Networks between MAGPRO16/96 & REP Panels
  • MAGPRO16 Firmware REV 2.8 or higher Required
  • MAGPRO96 Firmware REV 4.2 or higher Required
  • RS-485 Communication protocol
  • On-board LED indication
  • Power supply from the panel
  • Programming from the panel
  • 1000m transmission distance between modules

Maximum Number of Networked Panels:32
Operation Modes:Normal; flashing LEDs. Fault; solid LEDs
Warranty (Years):3
Cable Size (mm²):0.5 - 2.5
Communication Type:RS-485
Maximum Communication Range (m):1000m
Backup Communication:Yes; Redundancy Circuit
Compatible Products:Compatible with MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G
Additional Information:Allows MAGPRO Series CIE to be networked to other MAGPRO CIE or Repeater Panels
Features:Compatible with MAGPRO-16 & MAGPRO-96
