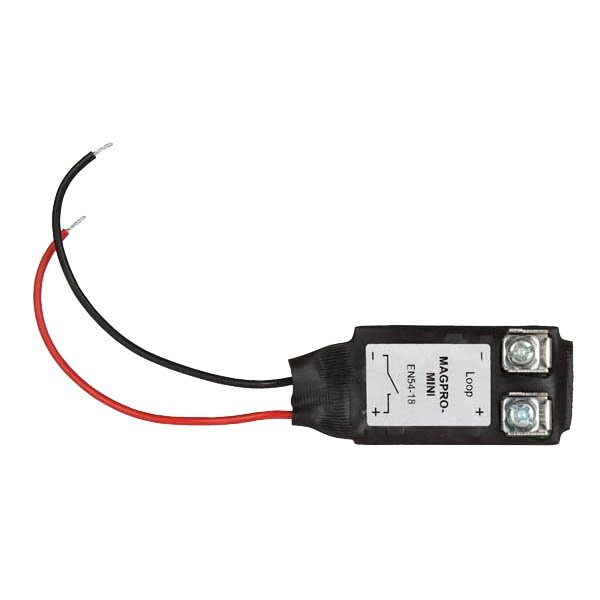

esp MAGPRO-MINI MAGfire 1 Input module

Part: MAGPRO-MINI

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

The MAGPRO-MINI is a compact module with one input. The module monitors and transfers to control panel the state of this input - state ON or state OFF. MAGPRO-MINI is designed for built-in installation in the mounting box of the device.
The module complies with the requirements of EN54-18.

Single volt free contact
Compact size - 58mm x 25mm x 12mm
Example applications - Integration of third party control devices
Compliant to EN54-18

Dimensions (mm):	43 x 25 (PCB)
Weight (Kg):	0.12
Warranty (Years):	3
Supply Voltage (V AC):	240
Power Indicator:	Green LED
Maximum Current Consumption:	100 μA @ 27Vdc
Permissible Voltage Ripple (pp):	3.0V (@27V DC)
Wiring Type:	Analogue Addressable (MAGPRO)
Protocol Type:	Custom (Closed)
Relative Humidity Resistance (%):	93 (@40?C)
Compatible Products:	Compatible with MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G
Standards:	BS EN 54-18
